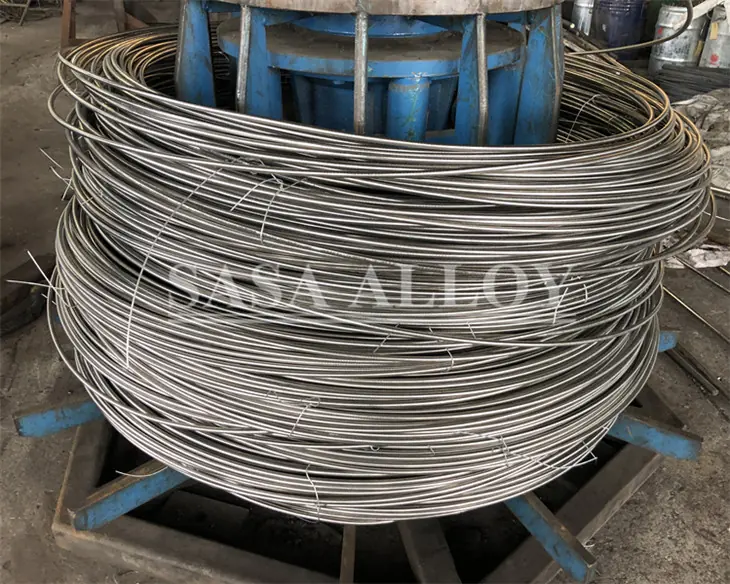

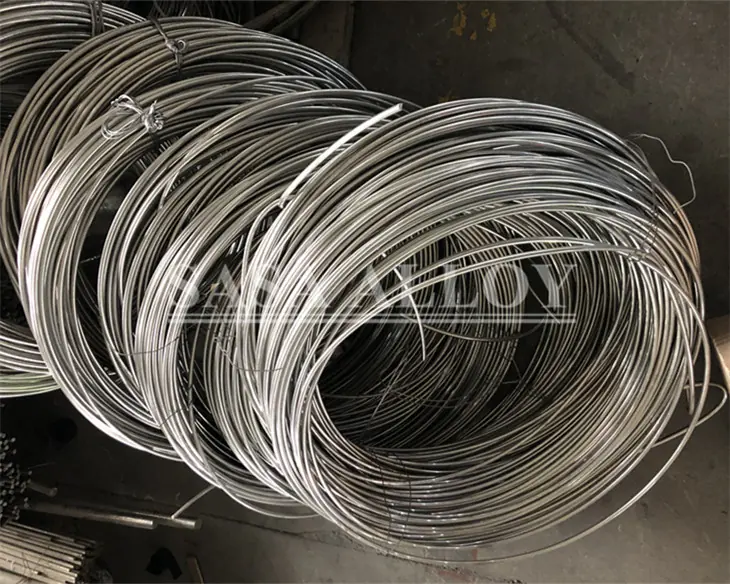

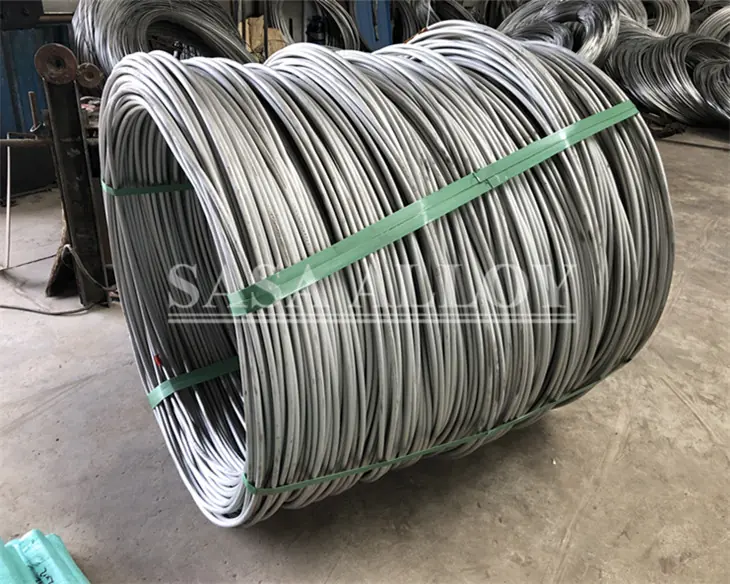

Monel 400 Wire

Short Description:

Monel 400 alloy has good corrosion resistance to many corrosive media, including salt water, sea water, acid, alkali, etc.Monel 400 wire still maintains good strength and heat resistance at high temperatures.Monel 400 alloy has good resistance to stress corrosion cracking and is suitable for applications in high stress environments. Specifications of Monel 400 Wire: Grade 400,K500 Standard ASTM B168 Length 100 mm TO 6000 mm, customizable…

Grade:: Monel 400
Standard:: ASTM B164 ASME SB164
Surface:: Bright, pickled, oxidized, or as required
Diameter:: 0.01 mm To 200 mm

Send email to us

Product Detail

Product Tags

Specifications of Monel 400 Wire:

Grade	400,K500
Standard	ASTM B168
Length	100 mm TO 6000 mm, customizable
Diameter	10 mm To 100 mm or as per client requirement
Types	Filler Wire, Coil Wire, Electrode Wire, Welding Wire, Wire mesh, Knitted wire mesh, filter mesh, mig wire, tig wire, spring wire
Surface	Polished bright, Smooth
Technology	Cold Rolled, hot rolled

Type Of Monel 400 Wire:


Monel 400 Wire	Monel 400 Wire Mesh	Monel 400 Welding Wire

Monel 400 10 gauge welded Wire Mesh	Monel 400 Knitted Wire Mesh	Monel 400 Filler Wire

Monel 400 Coil Wire	Monel 400 Electrode Wire	Monel 400 Spool Wire

Equivalent Grades Of Monel 400 Wires:

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Monel 400	2.4360	N04400	NW 4400	NA 13	МНЖМц 28-2,5-1,5	NU-30M	NiCu30Fe

CHEMICAL COMPOSITION OF Monel 400 Wire:

Grade	C	Mn	Si	S	Fe	Ni	Cu
400	0.30	2.0	0.50	0.024	2.5	63.0	28-34

Monel 400 Wires Mechanical Properties:

Density	Melting Point	Tensile Strength	Yield Strength 0.2% Proof	Elongation (% in 50mm) (thick.>0.76mm)
8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40%

SASA ALLOY'S Quality Assurance:

1. Visual Dimension Test 2. Mechanical examining like tensile, Elongation and reduction of area. 3. Impact analysis 4. Chemical examination analysis 5. Hardness test 6. Pitting protection test 7. Penetrant Test 8. Intergranular Corrosion Testing 9. Roughness Testing 10. Metallography Experimental Test

Why Choose Us:

Packing:

1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.

2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
