Inconel 718 Wire
Specifications of Inconel 718 Wire:
| Grade | 600, |
| Standard | ASTM B637 |
| Diameter | 0.1 mm To 100 mm or as per client requirement |
| Surface | Polished bright, Smooth |
| Technology | Cold Rolled, hot rolled |

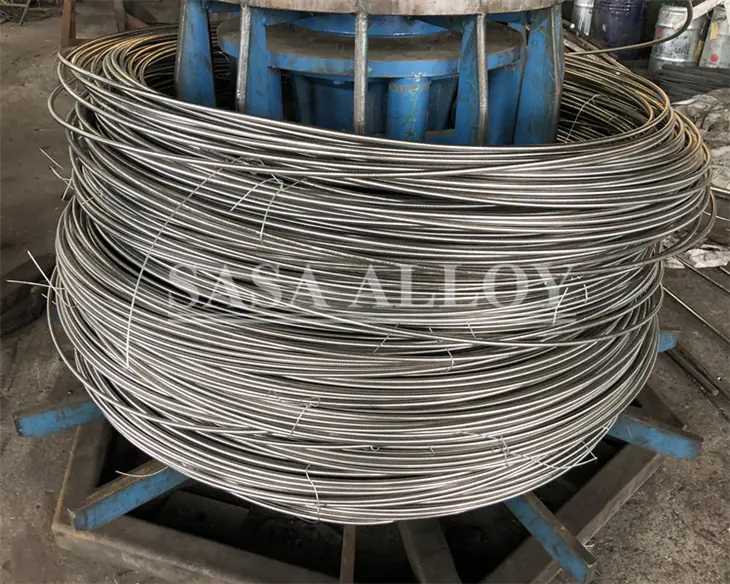

Inconel 718 Wire Coil Product View
This production image shows Inconel 718 wire wound in coil form. Coil winding, surface condition and handling quality are visually checked before forming, packing and shipment.
Equivalent Grades Of Inconel 718 Wires:
| STANDARD | 718 |
|---|---|
| WERKSTOFF NR. | 2.4668 |
| UNS | N07718 |
| JIS | NCF 718 |
High-temperature Inconel 718 wire Mechanical Properties:
| Density | 8.2 g/cm3 |
|---|---|
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 1,35,000 , MPa – 930 |
| Yield Strength (0.2%Offset) | Psi – 75,000 , MPa – 482 |
| Elongation | 45% |
Corrosion-resistant Inconel 718 wire Chemical Composition:
| Grade | 718 |
|---|---|
| C | 0.08 |
| Mn | 0.35 |
| Si | 0.35 |
| S | 0.15 |
| Ni | 50.0-55.0 |
| Cu | 0.30 |
| Cr | 17.0-21.0 |

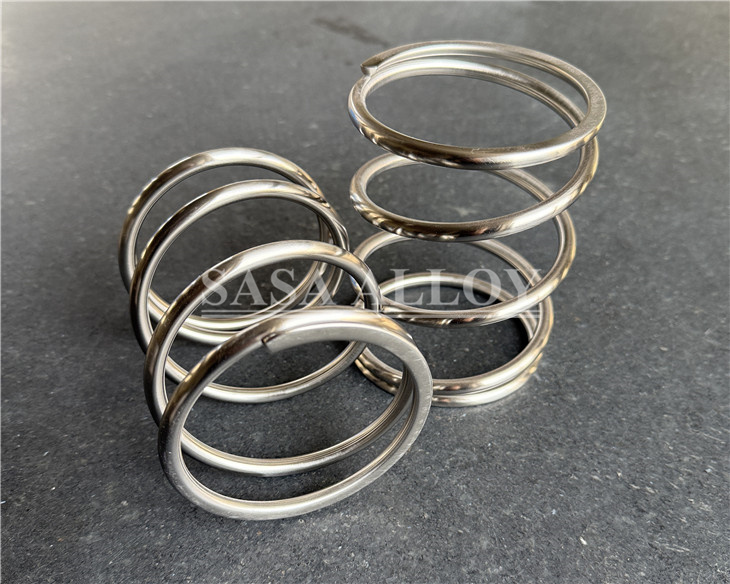

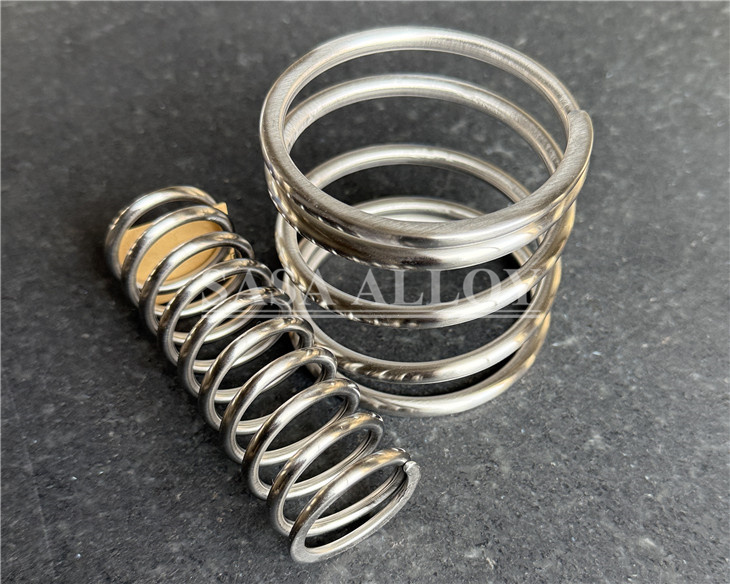

Inconel 718 Spring Wire – Precision Forming & Custom Processing:

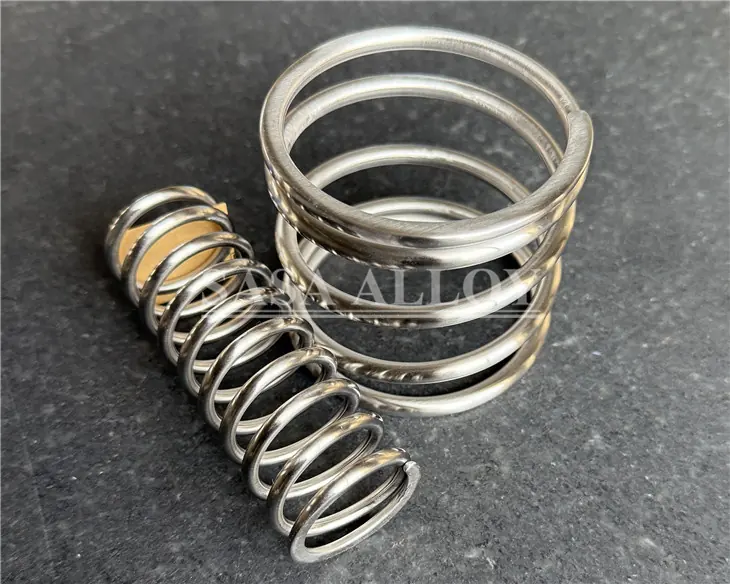

Formed spring samples demonstrate wire processing capability; coil geometry, surface condition and dimensional consistency are checked to support reliable service performance.
Sasaalloy offer custom spring wire fabrication services, providing precision forming and winding based on customer drawings or samples. Our capabilities include compression springs, extension springs, torsion springs, and various shaped springs. Materials can be produced in Inconel 718, Inconel X750, Inconel 625, Monel alloys, stainless steels, and more. We control wire diameter tolerance, coil count, free height, and surface finish to ensure high stability and durability. The processed spring wires deliver excellent high-temperature resistance, corrosion resistance, and fatigue strength, making them ideal for aerospace components, valve systems, chemical equipment, and other demanding applications.
SASA ALLOY'S Quality Assurance:
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Impact analysis
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Roughness Testing
10. Metallography Experimental Test
718 Wire Application:
Inconel 718 (UNS N07718) wire is used for formed components that need high strength and resistance to relaxation at elevated temperatures. Typical wire-related applications include:
- Springs: compression, extension and torsion springs where load retention matters during service.
- Fasteners and formed parts: wire feedstock for appropriately qualified manufacturing routes, with dimensions and strength defined by the component specification.
- Aerospace and gas-turbine assemblies: spring and fastening components selected to the approved drawing and material specification.
- Industrial valve and equipment assemblies: spring components where the operating temperature, loading and process environment justify alloy 718.
Selection note: Wire condition, cold work and final heat treatment affect strength and spring performance. Confirm forming requirements, operating temperature, stress and environment before selection. A general alloy description does not qualify a finished component or establish its service life.
Why Choose Us:
For an Inconel 718 wire enquiry, give SASA ALLOY the application and purchasing requirements together so that the material and processing scope can be clearly defined.
- Specification-led enquiries: state UNS N07718, the applicable standard, wire diameter and tolerance, surface finish, quantity and required delivery condition.
- Forming requirements: for spring or shaped-wire enquiries, include a drawing or sample details, geometry and the intended forming and heat-treatment sequence. Confirm feasibility and acceptance requirements before ordering.
- Documentation requirements: specify the material certificate, heat traceability and dimensional or mechanical test records needed. Availability and the agreed inspection scope must be confirmed in the quotation.
- Packing and delivery coordination: state coil or spool requirements, handling restrictions and the destination so that packing, shipping terms and lead time can be agreed for the order.
Include your drawing, required condition and quantity in the enquiry form below to request a quotation.

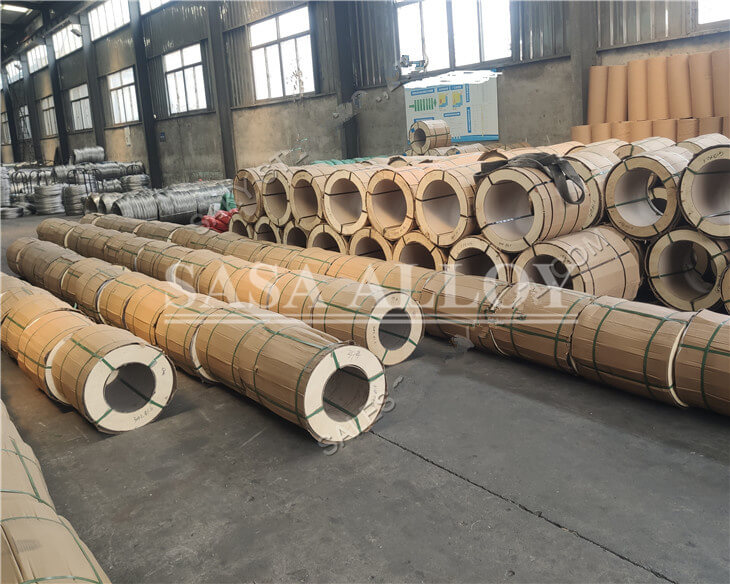

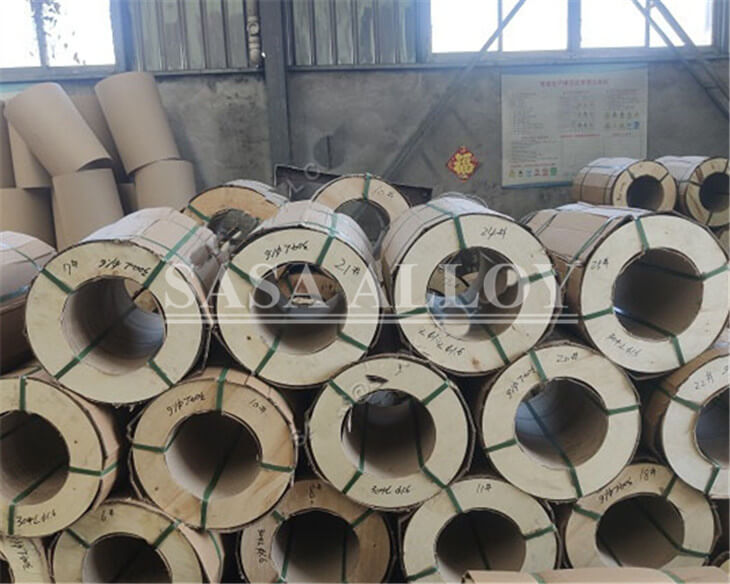

Inconel 718 wire suppliers Packing:

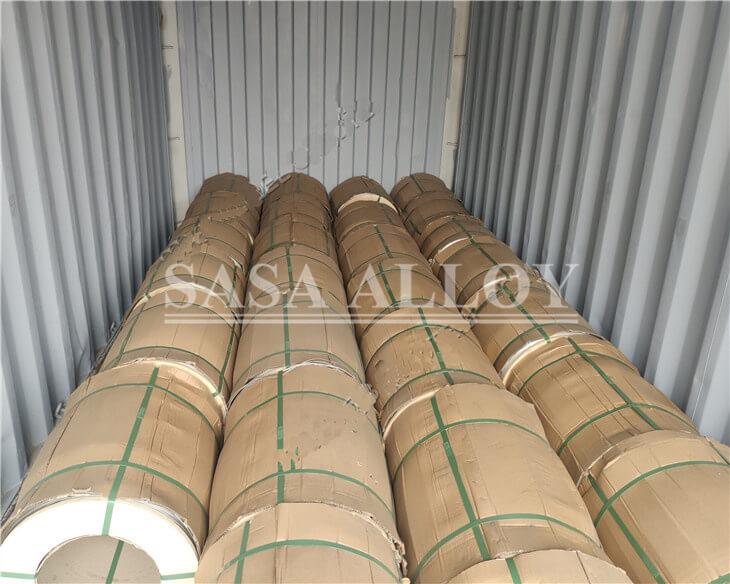

Coils are wrapped, edge-protected and securely strapped to reduce moisture, deformation and handling damage during storage and export shipment.
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
