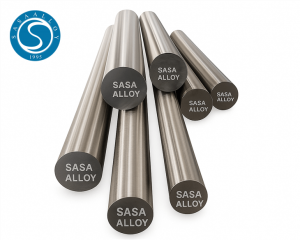

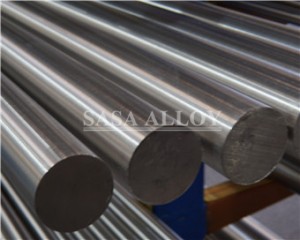

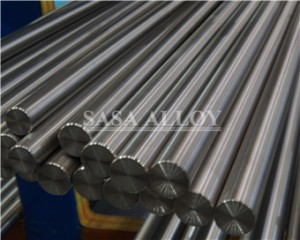

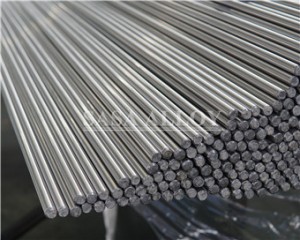

Inconel 617 Bar | Heat Resistant Alloy Rod N06617
Inconel 617 Bar is a solid-solution strengthened nickel-chromium-cobalt-molybdenum alloy designed for high-temperature strength and excellent oxidation resistance. With superior metallurgical stability and outstanding resistance to carburization and corrosive environments, this alloy is ideal for demanding industries such as aerospace, chemical processing, and power generation. Inconel 617 bar maintains its mechanical properties at temperatures up to 1100°C (2012°F), making it a preferred material for gas turbine components, combustion chambers, heat exchangers, and nuclear reactor parts. It also exhibits good weldability and workability, allowing for ease of fabrication in complex designs. With its unique combination of durability, temperature resilience, and corrosion resistance, Inconel 617 bar offers long-term reliability in the most extreme environments.
| Inconel 617 round bar Specification: |
| Grade | Inconel 617 – UNS N06617 |
|---|---|
| Specification | ASTM B166 UNS N06600 |
| Inconel 617 Round bar size | Diameter: 3mm~800mm |
| Inconel 617 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Inconel 617 Square bar size | 4mm*4mm~100mm*100mm |
| Inconel 617 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Inconel 617 Hex Bar size | 2mm~100mm |
| Inconel 617 Billet Size | 1/2″ to 495mm Diameter |
| Inconel 617 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| Inconel 617 Round Bar Standard Dimensions | As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| UNS N06617 Round BarChemical Composition: |
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr | Co |
| Inconel 617 | 0.05-0.15 | 1.0 | 1.0 | 0.50 max | 0.015 | 3.0 | 8.0-10.0 | 44.5 | 20.0-24.0 | 10.0-15.0 |
| Inconel 617 Bar Mechanical Properties: |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Equivalent Grades for Inconel 617 Bar: |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 617 | 2.4663 | N06617 |
| FAQ |
Q: What makes Inconel 617 suitable for high-temperature service?
A: Its unique blend of nickel, chromium, cobalt, and molybdenum ensures mechanical strength and oxidation resistance at temperatures exceeding 1000°C.
Q: Can Inconel 617 be welded easily?
A: Yes, it offers good weldability using TIG, MIG, or shielded metal arc welding methods with appropriate filler metals.
Q: How does Inconel 617 perform in carburizing environments?
A: It has excellent resistance to carburization, making it ideal for applications involving hot gases and fuels.
| SASA ALLOY’S Quality Assurance |
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Impact analysis
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Roughness Testing
10. Metallography Experimental Test
| Why Choose Us |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours(usually in the same hour)
5. Provide SGS TUV report.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
7.Provide one-stop service.
| Inconel 617 bar Package: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
