Hastelloy C276 bar
Hastelloy C276 bars are cylindrical metal bars made from this alloy and are used in various applications where corrosion resistance and high strength are required.Hastelloy C276 maintains its mechanical properties at elevated temperatures, making it suitable for use in high-temperature applications.
| Specifications of Hastelloy C276 Round bar: |
| Grade | Hastelloy C276 | UNS N10276 |
| Standard | ASTM B574 / ASME SB574 |
| Thickness | 0.1mm To 100 mm |
| Size | 5 mm To 500 mm |
| Diameter | 0.1 mm to 100 mm |
| Form | Round Bars, Square Bars, Flat Bars, Threaded Bars, Hollow Bars, Hexagonal Bars, Triangular Bars |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Applications | Most commonly used in petroleum refineries, Boilers, Heat exchangers, Condensers, Pipelines, Cooling towers, Steam exhausts, Electric generation plants, On occasion will be found in fertilizer and chemical plants. |
| TYPE OF Hastelloy C276 Round/Flat bar: |
|
|
|
|
|
|
| ASTM B574 Hastelloy Alloy C276 Bars Equivalent Grades: |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | OR | EN |
|---|---|---|---|---|---|---|---|
| Hastelloy C276 | 2.4819 | N10276 | ХН65МВУ | - | NW 0276 | ЭП760 | NiMo16Cr15W |
| Hastelloy C276 Round, Bright, Hex, Threaded Bar Chemical Composition: |
| Grade | Ni | Mo | Cr | Fe | W | Co | Mn | C | v | P | S | Si |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C276 | Bal | 15 – 17 | 14.5 – 16.5 | 4 – 7 | 3 – 4.5 | 2.5 max | 1.0 max | 0.01 max | 0.35 max | 0.04 max | 0.03 max | 0.08 max |
| Hastelloy C276 Round Bars Mechanical & Physical Properties |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.89 g/cm33 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40% |
| Hastelloy C276 Black Bar Stock List: |
| ALLOY C 276 | Diameter |
| Cold drawn, pickled, soft annealed | Dia=5mm,Weight=0.17 kg/m |
| Cold drawn, pickled, soft annealed | Dia=6mm,Weight=0.25 kg/m |
| Solution annealed, ground, polished | Dia=8mm,Weight=0.44 kg/m |
| Solution annealed, ground, polished | Dia=10mm,Weight=0.7 kg/m |
| Hot finished, ground, solution annealed | Dia=12mm,Weight=1.01 kg/m |
| Solution annealed, ground, polished,bright | Dia=10mm,Weight=0.7 kg/m |
| Hot finished, solution annealed | Dia=16mm,Weight=1.77 kg/m |
| Hot finished, solution annealed | Dia=18mm,Weight=2.24kg/m |
| Hot finished, solution annealed, peeled | Dia=27mm,Weight=5.04kg.m |
| Hot finished, solution annealed, peeled | Dia=30mm,Weight=6.1 kg/m |
| Hot rolled, solution annealed | Dia=32mm,Weight=7.08kg/m |
| Machined, Solution annealed | Dia=35mm,Weight=7.95 kg/m |
| Machined, Solution annealed | Dia=38mm,Weight=10kg/m |
| Hot worked, solution annealed, peeled | Dia=45mm,Weight=14.15 kg/m |
| Hot worked, solution annealed, peeled | Dia=50mm,Weight=17.3kg/m |
| Hot rolled, sol annealed, machined | Dia=55mm,Weight=21.0 kg/m |
| Hot finished, solution annealed, peeled | Dia=65mm,Weight=29.2kg/m |
| Hot finished, solution annealed, peeled | Dia=80mm,Weight=45.2 kg/m |
| Forged, peeled, annealed | Dia=100mm,Weight=69.1kg/m |
| Hot finished, peeled | Dia=105mm,Weight=73.3 kg/m |
| Hot finished, peeled | Dia=110mm,Weight=83.6kg/m |
| Annealed, peeled | Dia=120mm,Weight=99.5kg/m |
| Annealed, peeled | Dia=140mm,Weight=135.4kg/m |
| Annealed, peeled | Dia=150mm,Weight=155.5kg/m |
| Forged, solution annealed, turned | Dia=160mm,Weight=176.9kg/m |
| Annealed, peeled | Dia=133mm,Weight=122.2kg/m |
| Forged, solution annealed, turned | Dia=210mm,Weight=304.7kg/m |
| Why Choose Us: |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

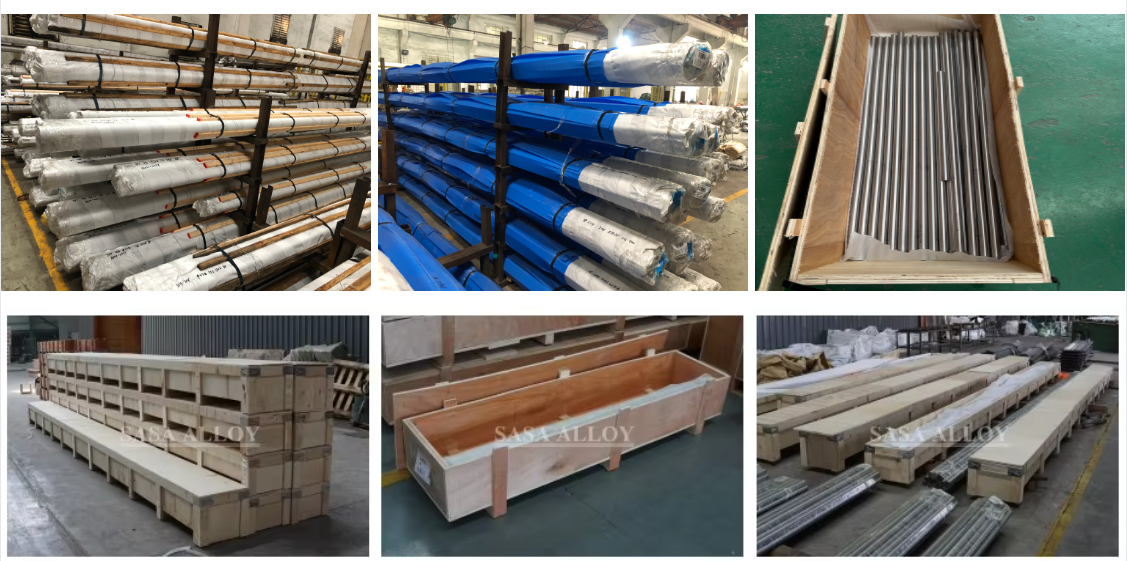

| Packing: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as
