Premium Alloy 20 | UNS N08020 | Acid-Resistant Nickel Alloy plate
Alloy 20 Plates are known by a variety of alternative names and industry designations across global markets. Common synonyms include Carpenter 20 Plate, UNS N08020 Plate, Incoloy 20 Plate, 2.4660 Plate, and Alloy 20Cb-3 Plate. In China, they may also be referred to as NS143 Plate or NiCr20CuMo Plate. These diverse identifiers reflect Alloy 20’s widespread usage and recognition as a corrosion-resistant nickel-based alloy suitable for demanding applications.Alloy 20 Plates, also known as Carpenter 20 or UNS N08020, are engineered for exceptional resistance to sulfuric acid and chloride stress corrosion.
| Specifications of 2.4660 Plate: |
| Specifications | ASTM B463 |
| Grade | Alloy 20,UNS N08020 |
| Thickness | 0.3 mm to 120mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard, etc. |
| Surface | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D,etc. |
| CHEMICAL COMPOSITION OF UNS N08020 Plate: |
| Grade | Cu | Si | C | Fe | Ni | Cr | Mn | Nb |
| 20 | 3.0-4.0 | 1.0 | 0.06 | bal | 32.0-38.0 | 19.0-21.0 | 2.0 | 8xC-1.0 |
| Nickel Alloy 8020 Material Equivalent Standard: |
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
| Alloy 20Cb-3 Plate Mechanical Properties: |
| Density | Melting Point | Tensile Strength | Yield Strength | Elongation |
| 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30% |
| Alloy 20 Sheet Thickness: |
| Size (mm) | Size (INCH) |
| 3.18 | 0.125" |
| 3.40 | 0.134" |
| 3.96 | 0.156" |
| 4.75 | 0.187" |
| 6.35 | 0.250" |
| 7.92 | 0.312" |
| 9.53 | 0.375" |
| 12.7 | 0.500" |
| 15.9 | 0.625" |
| 19.1 | 0.750" |
| 22.2 | 0.875" |
| 25.4 | 1" |
| 28.6 | 1.125" |
| 31.8 | 1.250" |
| 38.1 | 1.500" |
| 44.5 | 1.750" |
| 50.8 | 2" |
| 63.5 | 2.500" |
| 76.2 | 3" |
| Incoloy 20 Plate Applications: |
• Chemical processing: storage tanks, piping, and heat exchangers
• Food and beverage: sterilization equipment and mixing tanks
• Pharmaceutical industry: reactors and process piping
• Power generation: flue gas scrubbers and condensers
• Marine engineering: corrosion-resistant structural components
| Why Choose Us |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours(usually in the same hour)
5. Provide SGS TUV report.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
7.Provide one-stop service.

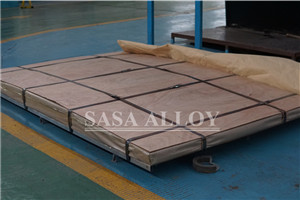

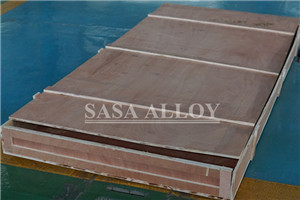

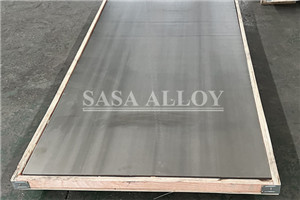

| Nickel Alloy 20 Plate Packing |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
