Inconel 600 round bar
INCONEL alloy 600 (UNS N06600, W.Nr. 2.4816) is a nickel-chromium-iron alloy selected for corrosion resistance, oxidation resistance and service across a wide temperature range. Round bar and other bar forms are used for machined components, furnace hardware, chemical-processing parts and other equipment where both material stability and corrosion resistance matter.
For quotation and technical review, specify ASTM B166 or ASME SB166, the required bar form, diameter or cross-section, length, condition, tolerance, quantity, surface finish and inspection-document requirements.
| Specifications of INCONEL 600 Round Bar: |
| Grade | INCONEL alloy 600 / UNS N06600 / W.Nr. 2.4816 |
| Product standard | ASTM B166 / ASME SB166 |
| Bar forms | Round, square, hexagon and rectangle (flat bar) |
| Manufacturing condition | Hot-finished or cold-worked, as specified in the purchase order |
| Dimensions and tolerance | State the required diameter or cross-section, length and tolerance in the RFQ; final availability is confirmed in the quotation. |
| Surface finish | Black, peeled, ground, bright or polished finish, subject to the selected bar condition |
| RFQ information | Grade, standard, form, size, condition, tolerance, quantity and required inspection documents |
| INCONEL 600 Round bar: |
|
|
|
|
|
|
| AVAILABLE STOCK OF INCONEL 600 Black Round bar: |
| Product form | Diameter |
| annealed, centerless ground | Dia=8mm,Weight=0.4 kg/m |
| annealed, centerless ground | Dia=10mm,Weight=0.7 kg/m |
| hot finished, annealed, ground | Dia=20mm,Weight=2.7 kg/m |
| hot finished, annealed, ground | Dia=22mm,Weight= 3kg/m |
| hot worked, annealed | Dia=25mm,Weight=4.3kg/m |
| hot worked, annealed | Dia=28mm,Weight=5.4kg/m |
| hot finished, annealed, ground | Dia=30mm,Weight=6.2 kg/m |
| EQUIVALENT GRADES OF INCONEL 600 Round bar: |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| INCONEL 600 | 2.4816 | N06600 | NCF660 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| CHEMICAL COMPOSITION OF INCONEL 600 Round bar: |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| INCONEL 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Physical Constants and Thermal Properies: |
| Property | Imperial Units | Metric Units |
|---|---|---|
| Density | 0.306 lb/in³ | 8.47 g/cm³ |
| Melting Range | 2470 – 2575 °F | 1354 – 1413 °C |
| Specific Heat | 0.106 Btu/lb·°F | 444 J/kg·°C |
| Curie Temperature | -192 °F | -124 °C |
| Permeability at 200 Oersted (15.9 kA/m) | 1.010 | – |
| Coefficient of Expansion (70–200°F / 21–93°C) | 7.4 × 10⁻⁶ in/in·°F | 13.3 µm/m·°C |
| Thermal Conductivity | 103 Btu·in/ft²·h·°F | 14.9 W/m·°C |
| Electrical Resistivity | 620 ohm·circ mil/ft | 1.03 µΩ·m |

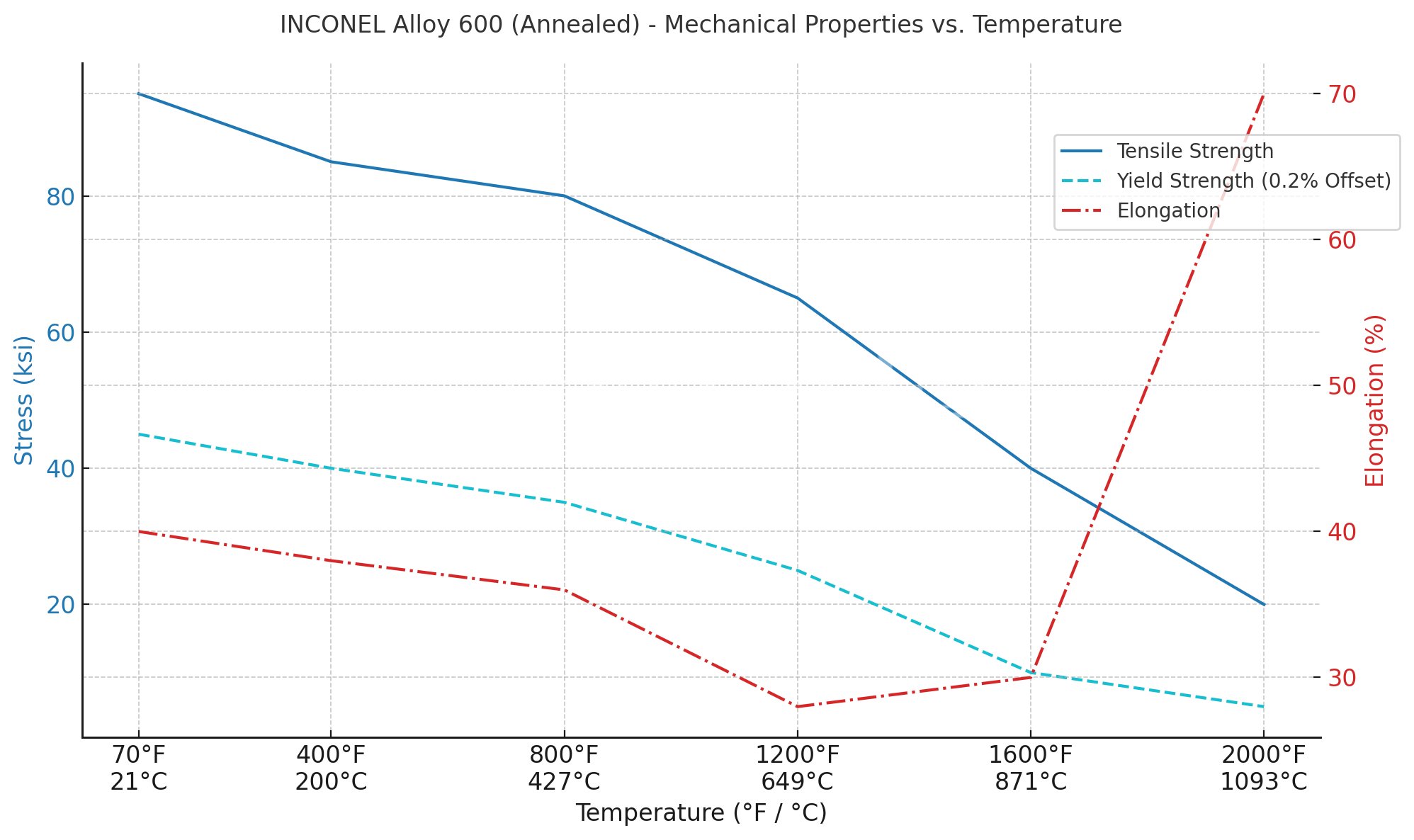

| Typical Mechanical Properties: |
| Property | Imperial Units | Metric Units |
|---|---|---|
| Tensile Strength | 95 ksi | 655 MPa |
| Yield Strength (0.2% Cƒ set) | 45 ksi | 310 MPa |
| Elongation | 40% | — |
| Why Choose Us: |
1. You can get the perfect material according to your requirement at the least possible price. 2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical. 3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement) 4. e guarantee to give a response within 24hours(usually in the same hour) 5. You can get stock alternatives, mill deliveries with minimizing manufacturing time. 6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
| Packing: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. 2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as
