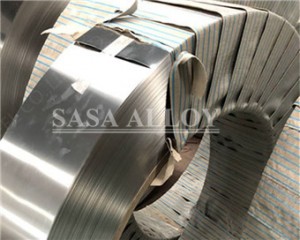

ASTM B424 2.4858 N08825 Incoloy 825 Strip
Incoloy 825 is a type of nickel-iron-chromium alloy that is designed for high-temperature applications. It is known for its excellent resistance to oxidation, carburization, and other forms of high-temperature corrosion. Incoloy 825 strips refer to thin, flat pieces of this alloy that are commonly used in various industrial applications where resistance to high temperatures and corrosion is essential.
| Specifications of Incoloy 825 Strip: |
| Grade | Incoloy 825 | UNS N08825 |
| Standard | ASTM B424 |
| Thickness | 0.15 mm to 3.50 mm |
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO.(8), SATIN (Met with Plastic Coated) |
| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Hardness | Annealed-pickled(soft), 1/4 hard, 1/2 hard, 3/4 hard & full hard (as rolled) etc. |
| Applications | Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry |

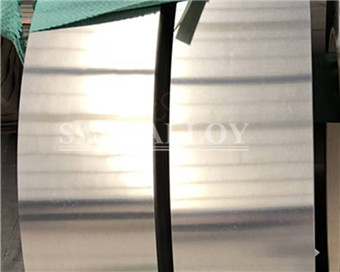

| Type of Strip: |
|
[caption id="attachment_4359" align="aligncenter" width="240"] |
[caption id="attachment_4358" align="aligncenter" width="240"] |
[caption id="attachment_4357" align="aligncenter" width="240"] |
|
[caption id="attachment_4360" align="aligncenter" width="240"] |
[caption id="attachment_4361" align="aligncenter" width="240"] |
[caption id="attachment_4362" align="aligncenter" width="240"] |
| EQUIVALENT GRADES OF Incoloy 825 Strip: |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA16 | ЭП703 | NFE30C20DUM | NiCr21Mo |
| CHEMICAL COMPOSITION OF Incoloy 825 Strip: |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti | Mo |
| Incoloy 825 | 0.05max | 1.00 max | 0.5 max | 0.03max | 1.5-3max | 22 max | 38.00-46.0 | 19.5 – 23.5 | 0.2max | 0.6-1.2 | 2.5-3.5 |
| Incoloy 800 Strips Mechanical Properties: |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Why Choose Us? |
1. You can get the perfect material according to your requirement at the least possible price. 2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical. 3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement) 4. We guarantee to give a response within 24hours(usually in the same hour) 5. You can get stock alternatives, mill deliveries with minimizing manufacturing time. 6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
| Packing: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. 2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
