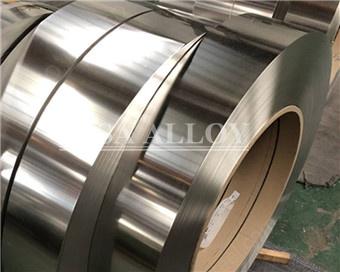

ASTM B409 N08800 1.4876 Incoloy 800 Strips
ASTM B409 Incoloy 800 strip (UNS N08800 / 1.4876) is a nickel-iron-chromium alloy strip for components exposed to oxidation, carburization and elevated-temperature service. It is available in precision-slit coils with thickness, width, temper and surface finish tailored to the order. For a quotation, send the required thickness, width, coil ID/OD, temper, quantity and inspection-document requirements.
| Specifications of Incoloy 800 Strip: |
| Grade | Incoloy 800 | UNS N08800 |
| Standard | ASTM B409 |
| Thickness | 0.15 mm to 3.50 mm |
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Hardness | Annealed-pickled(soft), 1/4 hard, 1/2 hard, 3/4 hard & full hard (as rolled) etc. |
| Applications | Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry |

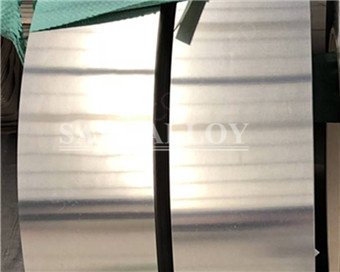

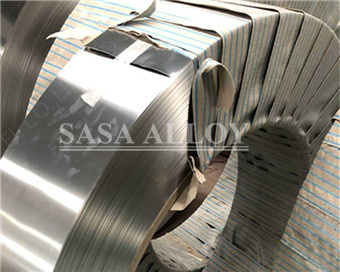

| TYPE OF Incoloy 800 Strip: |
|
[caption id="attachment_4359" align="aligncenter" width="240"] |
[caption id="attachment_4358" align="aligncenter" width="240"] |
[caption id="attachment_4357" align="aligncenter" width="240"] |
|
[caption id="attachment_4360" align="aligncenter" width="240"] |
[caption id="attachment_4361" align="aligncenter" width="240"] |
[caption id="attachment_4362" align="aligncenter" width="240"] |
| EQUIVALENT GRADES OF Incoloy 800 Strip: |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 |
| CHEMICAL COMPOSITION OF Incoloy 800 Strip: |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Incoloy 800 | 0.10max | 1.50 max | 1.0 max | 0.015max | 0.75max | 39.5 max | 30.00-35.0 | 19.00 – 23.00 |
| Incoloy 800 Strips Mechanical Properties: |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 | 7.94 g/cm3 | 1385 °C (2460 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| ALLOY 800 STRIP SAMPLE TEST REPORT: |

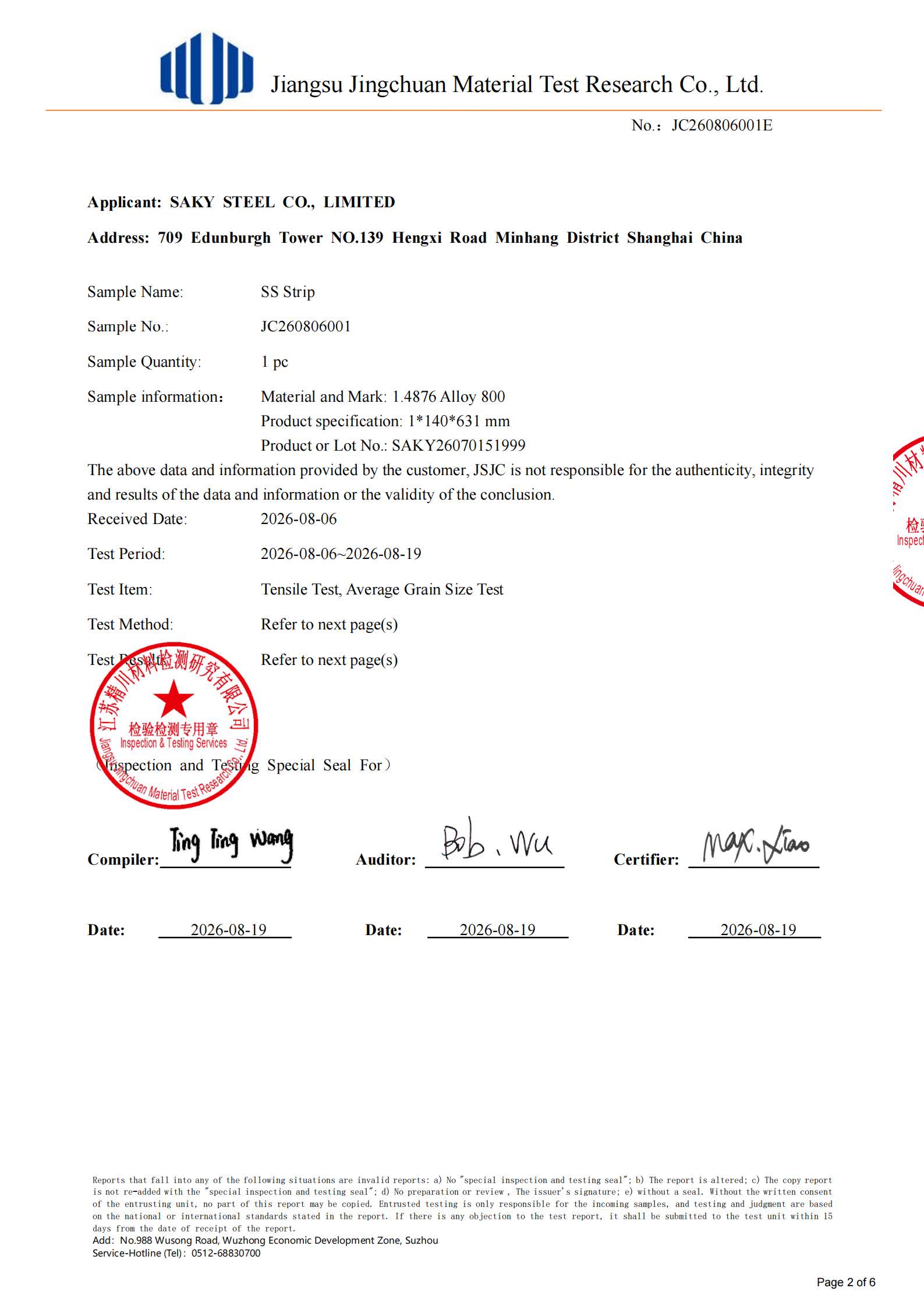

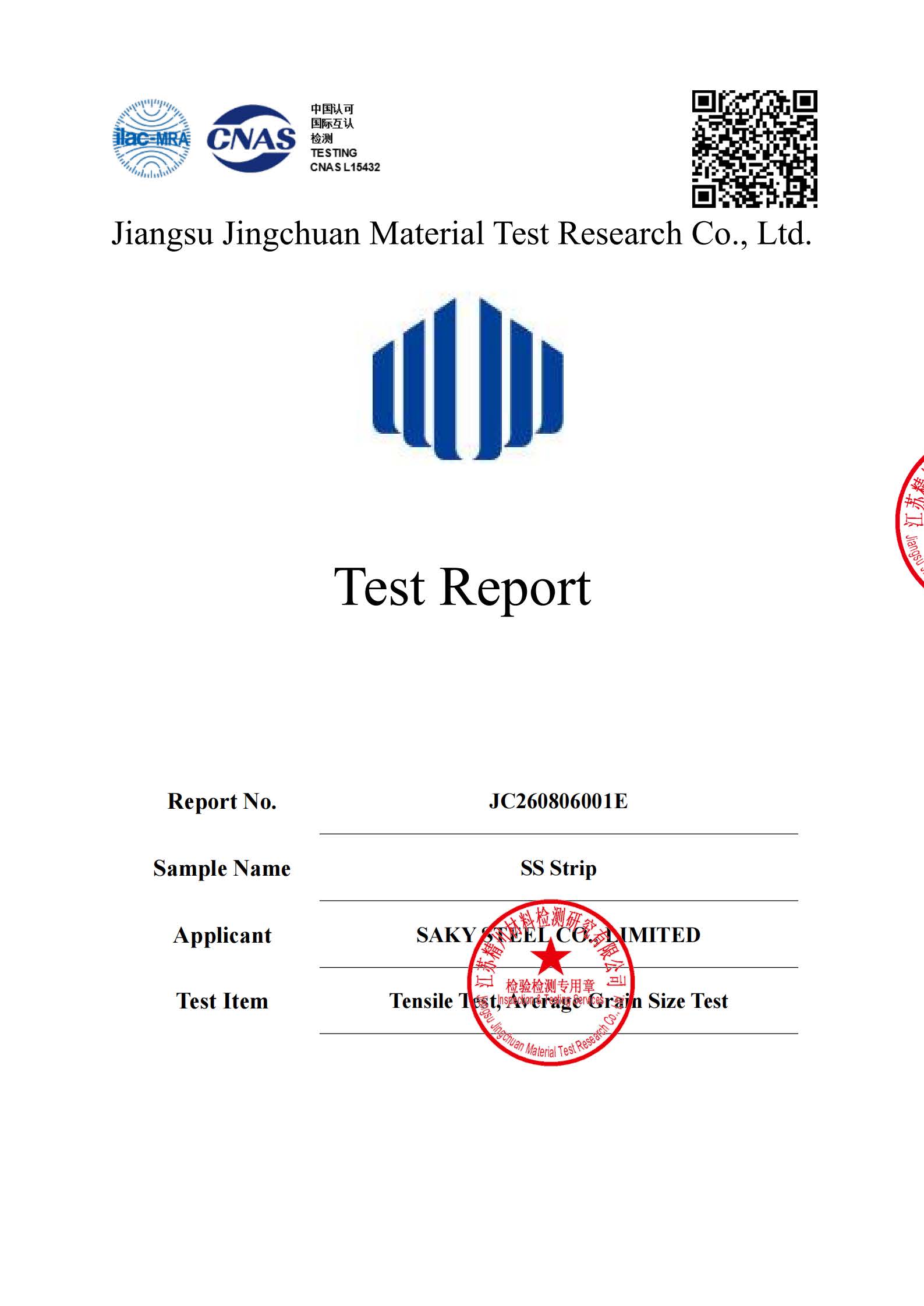

This third-party report records testing of one Alloy 800 / 1.4876 strip sample, size 1.0 × 140 × 631 mm, under report No. JC260806001E. Tensile testing was performed to ASTM A370-24a and average grain size was evaluated using the ASTM E112-25 comparison procedure. The two tensile specimens recorded 572–577 MPa tensile strength, 234 MPa 0.2% yield strength and 39.0–41.0% elongation; the reported average grain size number was 8. All listed report items passed the client requirements. This report applies only to the identified sample and lot; order-specific certificates and testing requirements should be stated with the enquiry.
 |
 |
Download Full Alloy 800 Strip Test Report (PDF)
