Inconel 718 bar
Inconel 718 round bar suppliers, Inconel 718 Flat Bar, Inconel 718 Hex Bar Suppliers in China, Inconel 718 Rod, Alloy 718 Hollow Bar Stockist in China, Inconel Alloy 718 Round Rod distributor, Inconel 718 Round Bar manufacturer in China.
Inconel Alloy 718 Round Bar is austenitic nickel-based superalloy. Inconel 718 bar is designated as UNS N07718 and Werkstoff Number 2.4668. Inconel 718 Bright Bar is also known as Nicrofer 5219 Round Bar, Superimphy 718 Round Bar, Haynes 718 Round Bar, Pyromet 718 Round Bar, Supermet 718 Round Bar. and Udimet 718 Round Bar. Inconel 718 Round Bar Chemistry is Nickel 52%, Chromium 19%, Iron, 18%, Columbium 5%, Molybdenum 3%, Titanium 1%. These Alloy 718 Round Bar, Inconel 718 Bar, Inconel 718 Hollow Bar and Inconel 718 Shaft are mainly used in Gas turbine engines ducts, cryogenic tanks, springs and fasteners and motor components. For most applications, Alloy 718 Round Bar / Inconel 718 Forged Bar is specified as: solution annealed and precipitation hardened.Sasa alloy’s Inconel Alloy 718 Bar / Inconel 718 Round Bars is hardened by the precipitation of secondary phases.
| Specifications of Inconel Alloy 718 Round Bar: |
| Grade | Inconel 718 – UNS N07718 |
|---|---|
| Specification | ASTM B637 UNS N07718, ASTM B 637 / ASME SB 637, AMS 5662, AMS 5663, AMS 5664 |
| Inconel 718 Round bar size | Diameter: 3mm~800mm |
| Inconel 718 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Inconel 718 Square bar size | 4mm*4mm~100mm*100mm |
| Inconel 718 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Inconel 718 Hex Bar size | 2mm~100mm |
| Inconel 718 Billet Size | 1/2″ to 495mm Diameter |
| Inconel 718 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| Inconel 718 Round Bar Standard Dimensions | As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Inconel 718 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Inconel 718 Bar Type | Drawn Bar, Rolled Bar, Forged Bar, GFM Forged Bar, Open Die Bar, Forged Stepped Shafts, Forged Flat Bar, Forged Square Bar |
| Also Check price list of | Inconel Round Bar, Inconel 625 Round Bar, Inconel 718 Round Bar, Hastelloy Round Bar, Monel Round Bar, Titanium Round Bar, Copper Nickel Bar, Stainless Steel Round Bar |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Our Inconel 718 Round Bar conforms to NACE MR0175/ISO 15156 | |
| Type of INCONEL 718 bar: |
|
|
|
|
|
|
| Inconel Alloy 718 Round, Bright, Hex, Threaded Bar Chemical Composition: |
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Ti | Cu | B | Al | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 50 | 17 | Bal | 2.8 | 4.75 | - | - | - | - | - | 0.65 | - | - | 0.20 | - |
| Max | 55 | 21 | - | 3.3 | 5.50 | 0.08 | 0.035 | 0.35 | 0.015 | 0.015 | 1.15 | 0.30 | 0.0006 | 0.80 | 1.00 |
| 718 Inconel Alloy Round Bars Mechanical Properties |
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HB |
| Min | Min | Min | Min | Min |
| 1034 | 1275 | 12 | 15 | 331 |
| Mechanical Properties in Solution Annealed and Aged Condition for Oil patch bar: |
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRC |
| Min | Min | Min | Min | Min |
| 827 | 1034 | 17 | 25 | 40 |
| ASTM B637 Inconel 718 Bars Equivalent Grades: |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Inconel 718 | 2.4668 | N07718 |
| Inconel 718 Black Bar Stock List: |
| Product form | Diameter |
| hot rolled, solution annealed, machined | Dia=16mm,Weight=1.62 kg/m |
| solution treated, machined, centerless ground | Dia=20mm,Weight=2.47 kg/m |
| aged | Dia=25mm,Weight=3.89 kg/m |
| solution annealed, hot rolled | Dia=30mm,Weight=5.9 kg/m |
| age hardened | Dia=35mm,Weight=8.2 kg/m |
| age hardened | Dia=40mm,Weight=9.97 kg/m |
| machining quality, solution treated | Dia=60mm,Weight= 22.42kg/m |
| machining quality, solution treated | Dia=65mm,Weight=26.32 kg/m |
| hot forged, solution annealed | Dia=120mm,Weight=89.71 kg/m |
| Why Choose Us: |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

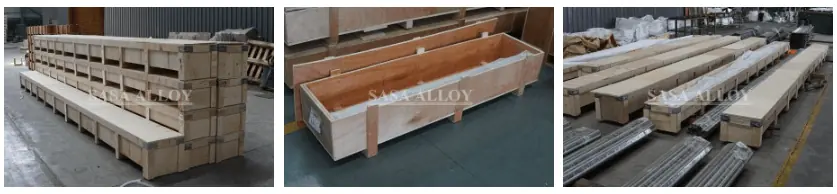

| Packing: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as
