Inconel 601 Sheet Plate

Short Description:

Inconel 601 plates and sheets are often supplied in the annealed condition, which provides them with optimal properties for further processing or fabrication. However, they can also be obtained in other conditions such as solution annealed or age hardened, depending on the specific application requirements.

Standard:AMS 5870, ASTM-B-168

Finish:Hot rolled plate (HR), Cold rolled sheet (CR)

Hardness:Soft, Hard, Half Hard, Quarter Hard

Material:N2, N1, NW2200, NW2201


Product Detail

Product Tags

Inconel 601 Plate is a solid solution nickel chromium heat resisting alloy which gives outstanding performance at temperatures up to about 1200°C. Alloy 601 Plate also has good aqueous corrosion resistance due to the high nickel content in combination with chromium. Strength and toughness are good, and are retained during extended service at high temperature. Inconel 601 Sheet has good resistance to nitriding in dissociated ammonia, and is only outperformed by Inconel 601 Coil in this application. Inconel 601 Rolling Sheet has good strength, ductility and toughness, and can be used at cryogenic temperatures.

Inconel 601 Flat Sheet is a Inconel alloy and available in the various forms including Inconel Alloy 601 Plate, Inconel 601 Flat Shim & Inconel 601 Perforated Plate etc. Inconel 601 Rolling Plate has good high temperature strength and retains its ductility after long service exposure, with good corrosion resistance under oxidizing conditions. Inconel 601 Hot rolled Plate is very resistant to high-temperature oxidation – up to 2200 º F – and its also has good resistance to aqueous corrosion. Inconel 601 Clad Plates are suitable to use at elevated temperatures.

Inconel 601 Shim is used in the chemical industry for its strength and corrosion resistance. Inconel 601 Cold rolled Plate are used extensively because of their corrosion resistance, high temperature strength and their special magnetic and thermal expansion properties. Inconel Alloy 601 Plate is a versatile element and will alloy with most metals. Alloy 601 Plate increases the hardenability of the material. Hitesh Steel has state of the art plasma cutting facilities, capable of cutting Alloy 601 Plate from 2mm to 80mm in thickness. We have fast access to ALL grades, sizes and thickness from 0.5mm to 300mm, as well as non-standard sizes.



Specifications:
Alloy 601 Plate Specification ASTM B168 UNS N06601, ASME SB168
Inconel 601 Plate Standard AMS 5870, ASTM-B-168, UNS N06601, ASME SB 168, DIN 17750, EN1009, ISO 6208, EN10095, ISO 6208
Inconel 601 Plate Sizes 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Inconel 601 Plate Thickness 0.1mm to 100 mm Thk
Inconel 601 Plate Width 10-2500mm
Inconel 601 Plate Length 2m, 2.44m, 3m, or as required
Inconel 601 Sheet ASTM ASTM B168
Inconel 601 Sheet AMS AMS 5870
Inconel 601 Plate Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Inconel 601 Sheet Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Inconel 601 Plate Stock in form of Alloy 600 Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate
Material JIS: N0, N2, N1, NW2200, NW2201, NW4400, NW5500, NW6002, etc
DIN:H-Ni99.96, H-Ni99.95, H-Ni99.92, H-Ni99.90, H-Ni99.5, H-Ni99, etc
Inconel 601 Plate ASTM Standard ASTM A162, GB/T2054, DIN177502002, ASTM B127ASTM B435ASTM B582ASTM B575ASTM B168ASTM B443ASTM B463ASTM B626ASTM B536, etc
Inconel 601 Plate Dimensions  As the customer required
Why choose Hitesh Steel
  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report, etc
  • High special strength, high melt point
  • Excellent corrosive resistance,good thermal resistance
  • Customer support after-sales service
  • Huge Stock, Timely delivery
  • Strict Control from Raw Material to Finished Inconel 601 plate
  • Free Quote, Inquiry answered within 24 hours
Inconel 601 profiling To provide a full profiling service we use numerous profiling methods including:

  • Laser Plate Cutting
  • Plasma Plate Cutting
  • Oxy-propane Flame Cutting
Specialized in
  • Inconel 601 Plate: material 3/16″ [5.00 mm] and over in thickness and over 10″ [250 mm] in width;
  • Inconel 601 Sheet: material under 3/16″ [5.00 mm] in thickness and 24″ [600 mm] and over in width;
  • Inconel 601 Strip: cold-rolled material under 3/16″ [5.00 mm] in thickness and under 24″ [600 mm] in width.
  • Inconel 601 Clad plate: Inconel 601 Clad plate is a composite steel plate made by bonding Inconel 601 plate, etc.



TYPE OF INCONEL 601 PLATES / SHEETS/COIL:

Alloy 660 Sheets

  • •Alloy 601 Sheets
  • •UNS N06601 Sheets
  • •ASTM B168 Inconel 601
  • Sheets
  • •ASME SB168 Alloy 601
  • Sheets
Alloy 660 Plates

  • •Alloy 601 Plates
  • •UNS N06601 Plates
  • •ASTM B168 Inconel 601
  • Plates
  • •ASME SB168 Alloy 601
  • Plates

Alloy 660 Chequered Plate

  • •Alloy 601 Chequered Plate
  • •UNS N06601 Chequered Plate
  • •ASTM B168 Inconel 601 Chequered Plate
  • •ASME SB168 Alloy 601 Chequered Plate

Alloy 660 Rolls

  • •Alloy 601 Rolls
  • •UNS N06601 Rolls
  • •ASTM B168 Inconel 601
  • Rolls
  • •ASME SB168 Alloy 601
  • Rolls
Alloy 660 Shim Sheet

  • •Alloy 601 Shim Sheet
  • •UNS N06601 Shim Sheet
  • •ASTM B168 Inconel 601 Shim
  • Sheet
  • •ASME SB168 Alloy 601 Shim
  • Sheet
Alloy 660 Perforated Sheet

  • •Alloy 601 Perforated Sheet
  • •UNS N06601 Perforated Sheet
  • •ASTM B168 Inconel 601 Perforated Sheet
  • •ASME SB168 Alloy 601 Perforated Sheet



Alloy 601 Plate Stock List:
Alloy Product form Dimension
INCONEL 601 (61Ni/23Cr/1.5Al) Sheet; cold rolled, solution annealed 0.5×1000 mm x coil, 4 kg/m
INCONEL 601 (61Ni/23Cr/1.5Al) Sheet; cold rolled, solution annealed 1.0×1200 mm x coil, 9.7 kg/m
INCONEL 601 (61Ni/23Cr/1.5Al) Sheet; cold rolled, sol. annealed 2.0x1200x3000 mm, 59.1 kg/pc
INCONEL 601 (61Ni/23Cr/1.5Al) Sheet; cold rolled, pickled, solution annealed 3.0x1200x3000 mm, 87.3 kg/pc
INCONEL 601 (61Ni/23Cr/1.5Al) Sheet; hot rolled, sol annealed, descaled, sheared 4.0x1200x3000 mm, 116 kg/pc
INCONEL 601 (61Ni/23Cr/1.5Al) Plate; hot rolled 5.0x1200x3000 mm, 152 kg/pc
INCONEL 601 (61Ni/23Cr/1.5Al) Plate; hot rolled, sol. annealed, descaled, sheared 6.0x2200x3100 mm, 330 kg/pc

Inconel 601 Sheet Stock

STOCKED SIZES
SIZE ALLOY 601 PLATE/ SHEET SIZE
.125″ Inconel 601 Plate, Inconel 601 Perforated Plate, Inconel 601 Sheet 3.18mm
.134″ Inconel 601 Coil, Inconel 601 Plate, Inconel 601 Strips 3.40mm
.156″ Inconel 601 Plate, Inconel 601 Perforated Plate, Inconel 601 Sheet 3.96mm
.187″ Inconel 601 Plate, Inconel 601 Sheet, Inconel 601 Rolling Plate 4.75mm
.250″ Inconel 601 Plate, Inconel 601 Rolling Sheets, Inconel 601 Sheet 6.35mm
.312″ Inconel 601 Plate, Inconel 601 Perforated Plate, Inconel 601 Sheet 7.92mm
.375″ Inconel 601 Plate, Inconel 601 Rolling Plate, Inconel 601 Sheet 9.53mm
.500″ Inconel 601 Plate, Inconel 601 Sheet, Inconel 601 Clad Plate 12.7mm
.625″ Inconel 601 Plate, Inconel 601 Flat Shim, Inconel 601 Sheet 15.9mm
.750″ Inconel 601 Plate, Inconel 601 Sheet, Inconel 601 Strips 19.1mm
.875″ Inconel 601 Plate, Inconel 601 Rolling Sheets, Inconel 601 Sheet 22.2mm
1″ Inconel 601 Plate, Inconel 601 Flat Shim, Inconel 601 Sheet 25.4mm
1.125″ Inconel 601 Plate, Inconel 601 Sheet, Inconel 601 Clad Plate 28.6mm
1.250″ Inconel 601 Plate, Inconel 601 Sheet, Inconel 601 Strips 31.8mm
1.500″ Inconel 601 Plate, Inconel 601 Rolling Plate, Inconel 601 Sheet 38.1mm
1.750″ Inconel 601 Plate, Inconel 601 Sheet, Inconel 601 Clad Plate 44.5mm
2″ Inconel 601 Plate, Inconel 601 Clad Plate, Inconel 601 Sheet 50.8mm
2.500″ Inconel 601 Plate, Inconel 601 Flat Shim, Inconel 601 Sheet 63.5mm
3″ Inconel 601 Plate, Inconel 601 Rolling Sheets, Inconel 601 Sheet 76.2mm



Inconel 601 Plate, Sheet & Strips Chemical Composition:
Grade C Mn Si S Cu Fe Ni Cr
Inconel 601 0.10 max 1.00 max 0.50 max 0.015max 1.00 max Balance 58.0 – 63.0 21.0 – 25.0

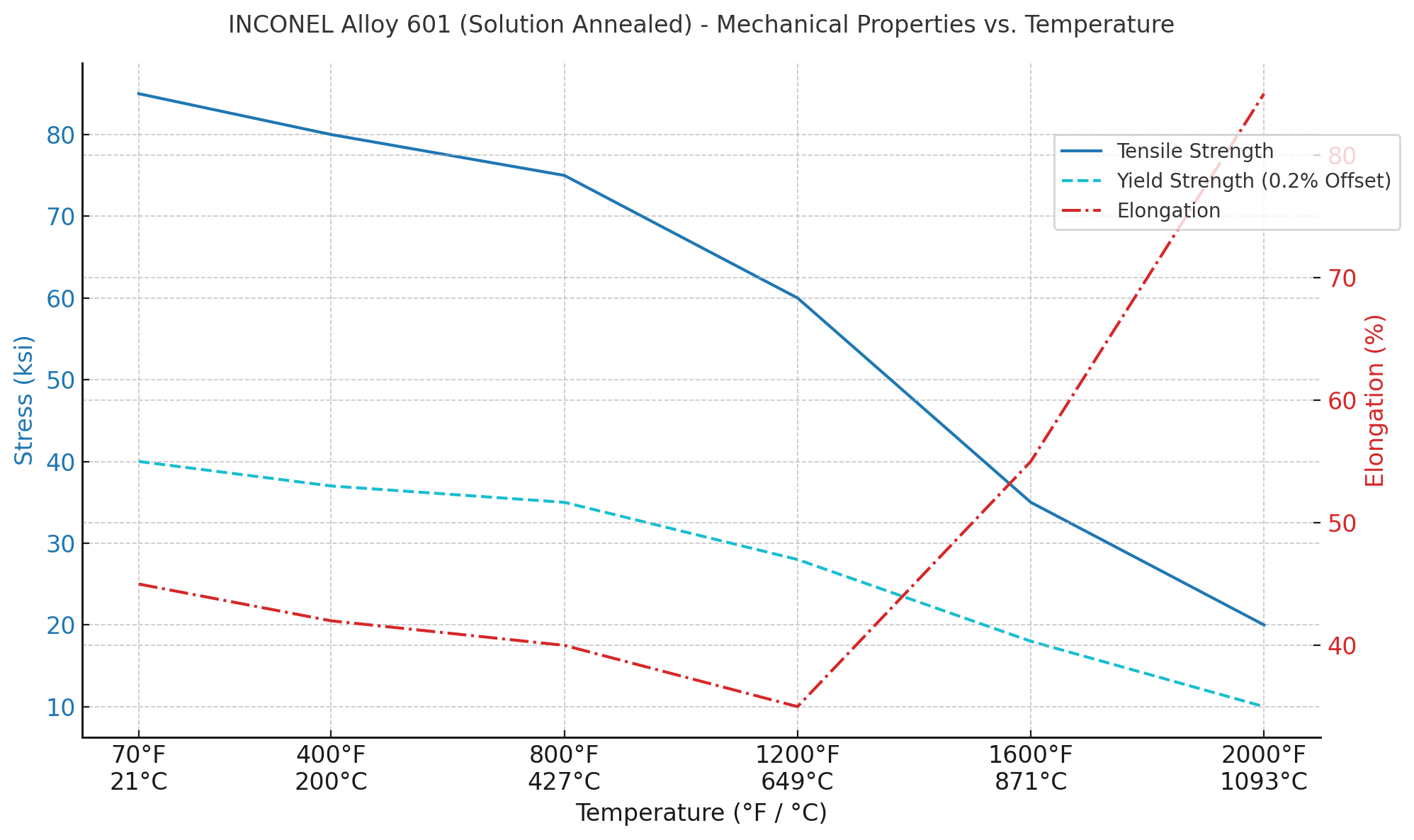

Alloy 601 Sheets, Plates & Coils Mechanical Properties:
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 601 8.1 g/cm3 1411 °C (2571 °F) Psi – 80,000 , MPa – 550 Psi – 30,000 , MPa – 205 30 %



Equivalent Grades for 601 Inconel Coils, Sheets & Plates:
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 601 2.4851 N06601 NCF 601 NA 49 XH60BT NC23FeA NiCr23Fe



Why Choose Us:

1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. e guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.



Packing:

1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.

2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,

INCONEL 660 PLATES / SHEETS

  INCONEL 660 PLATES / SHEETS  DSC08471_副本
