Short Description:

Incoloy 925 (UNS N09925) round bar to ASTM B805 for sour oil and gas, marine shafting, fasteners and other high-strength corrosion-resistant components. Specify diameter, length, delivery condition, surface, tolerance, tests and quantity for quotation.

Grade:
Incoloy 925 / UNS N09925
Standard:
ASTM B805
Condition:
Solution treated; solution treated and aged
Diameter:
3–800 mm (large sizes by confirmed route)

Product Detail

Product Tags

Incoloy 925 (UNS N09925) round bar is an age-hardenable nickel-iron-chromium alloy selected when a component needs both high mechanical strength and resistance to corrosion in sour oil and gas, marine, chloride-bearing and other aggressive service. Typical uses include downhole and surface oilfield components, valve parts, hangers, landing nipples, tool joints, packers, fasteners, pump and marine shafting.

For an accurate quotation, please specify the diameter, length, delivery condition, surface, dimensional tolerance, required tests and quantity. Large diameters may require a forged-bar route; the manufacturing route and inspection scope will be confirmed against the required size and service.

Incoloy 925 Round Bar – Procurement Information
Material Incoloy 925 / UNS N09925
Product Round bar and rod
Specification ASTM B805
Diameter 3–800 mm; larger diameters normally require confirmation of the forged-bar route, tolerance and inspection plan
Length 1–6 m or cut to length
Delivery condition Solution treated; solution treated and age hardened when specified
Surface Black, peeled, turned, ground, polished or machined
Tolerance ASTM B805 dimensional requirements; tighter tolerances by agreement
End preparation Saw cut, machined or chamfered as ordered
Why Buyers Specify Alloy 925
  • Age-hardenable strength: titanium and aluminium additions allow precipitation hardening for high-strength components.
  • Sour-service suitability: its nickel-chromium-molybdenum-copper system is used for components exposed to hydrogen-sulfide-containing oil and gas environments.
  • Chloride and marine resistance: suitable for shafting, fasteners, pumps and other components where strength and corrosion resistance are required together.
  • Machinable bar supply: round bar can be supplied peeled, turned, ground or polished to reduce downstream preparation.

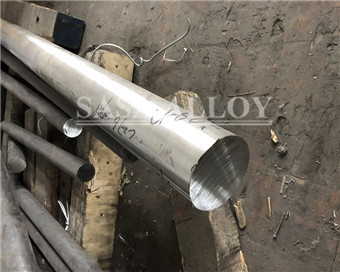

Incoloy 925 UNS N09925 round bars

Round bar

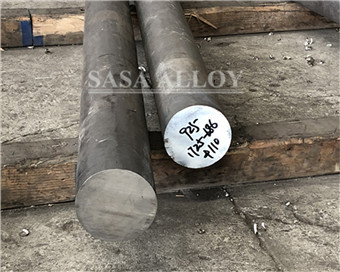

ASTM B805 Incoloy 925 bright bars

Bright bar

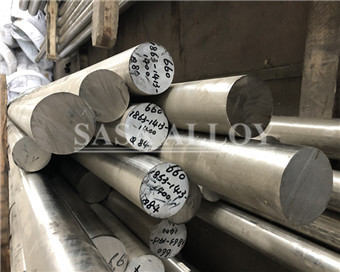

Incoloy 925 round bar surface and ends

Machined or finished bar
UNS N09925 Chemical Composition

Nominal specification limits are shown in weight percent. Final acceptance is based on the material specification and the purchase order.

Ni Cr Fe Mo Cu Ti Al C Mn Si S Nb
42.0–46.0 19.5–22.5 22.0 min 2.5–3.5 1.5–3.0 1.9–2.4 0.10–0.50 0.03 max 1.0 max 0.50 max 0.03 max 0.50 max
Testing and Order Documentation

Inspection and documentation should be defined before production. Depending on the order, the inspection scope can include chemical analysis review, tensile testing, hardness testing, dimensional inspection, surface inspection, positive material identification and ultrasonic testing. Material test documentation and any third-party inspection requirement should be stated in the purchase order.

Order item Information to provide
Size Diameter, length and quantity
Condition Solution treated or solution treated and aged; required mechanical properties
Finish Black, peeled, turned, ground, polished or machined
Accuracy Diameter tolerance, straightness, length tolerance and end condition
Inspection Required tests, acceptance criteria, certificate and third-party witness requirements
Service Operating environment, pressure/temperature information and sour-service requirement where applicable
Selection Notes

Choose Alloy 925 when a nickel alloy bar must combine corrosion resistance with substantially higher strength obtained by age hardening. If corrosion resistance is the main requirement and age-hardened strength is not required, an alloy such as Incoloy 825 may be considered. For very high-temperature strength, another precipitation-hardened nickel alloy may be more appropriate. Confirm the alloy, heat treatment and acceptance criteria from the actual service conditions rather than substituting grades by name alone.

Packing and Identification

Bars are protected according to size, surface condition and transport method. Typical options include bundled bars, wooden cases or frames, protective wrapping and end protection. Product identification and order-specific marking requirements should be stated at quotation stage.

Nickel alloy round bars protected for shipment Round bar packing in a wooden case Large diameter round bar with protective wrapping
Request a quotation
Send the diameter, length, quantity, delivery condition, surface, tolerance and inspection requirements. We will review the manufacturing route and prepare a product-specific quotation.
