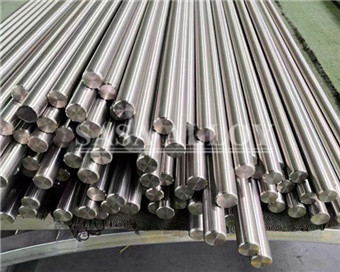

Titanium Gr.4 Bar

Short Description:

Titanium Grade 4, also known as Ti-4 or commercially pure titanium with slightly higher oxygen content than Grades 1, 2, and 3, is another variant of commercially pure titanium. Titanium Grade 4 bars are cylindrical metal bars made from this specific titanium alloy.

  • Specifications : ASTM B348 / SB348, GB/T 2965, JISH4650, DIN17862
  • Diameter : 4.00 mm to 400 mm
  • Surface Finish : Black, Bright, Polished
  • Condition: Cold Drawn & Polished Cold Drawn
  • Product Detail

    Product Tags

    ASTM B348 Titanium Gr.4 Bars, Titanium Alloy Grade 4 Bar, Titanium Gr 4 Round Bar, Sasa Alloy’s Titanium Gr.4 Forged Bar, Titanium Grade 4 Black Bars, Titanium UNS R50700 Round Bar, Titanium 3.7065 Rods Exporter, ASTM B348 Titanium Grade 4 Round Bar Suppliers in China.


    ASTM B348 Titanium Gr.4 Bars Specification:

    Specifications : ASTM B348 / SB348, GB/T 2965, JISH4650, DIN17862

    Length :5.8M,6M & Required Length

    Round Bar Diameter : 4.00 mm to 400 mm

    Bright Bar : 4mm – 150mm,

    Surface Finish : Black, Bright, Polished

    Condition: Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished

    Form : Round, Square, Hex (A/F), Rectangle, Forging Etc.

    End : Plain End, Beveled End


    ASTM B348 Gr.4 Titanium Bars Equivalent Grades:
    Titanium Gr.4 3.7065 R50700


    UNS R50700 Titanium Round Bars Chemical Composition and Mechanical properties:
    Grade C O N H Fe Al V
    Titanium Gr.4 0.08 max 0.40 max 0.05 max 0.015 max 0.50 max - -

    Grade  Tensile Strength,min   Yield Strength(0.2% Offset) min or orange  Elongation in 4D, min, %  Reduction of Area, min %
     Titanium Gr.4  80 ksi  550 MPa 70 ksi   483 MPa 15  15


    ASTM B348 Gr.4 Titanium Bar Surface finish:
    Cold drawn
    Bright drawn
    Slit rolled edge
    Centreless ground
    Hot finished
    Cold finished
    Hot rolled annealed and pickled
    Peeled and turned
    Rough turned/peeled
    Smooth turned
    Peeled and reeled


    Why Choose Us :

    1. You can get the perfect material according to your requirement at the least possible price.

    2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.

    3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)

    4. e guarantee to give a response within 24hours(usually in the same hour)

    5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.

    6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.


    Sasa alloy’S Quality Assurance (including both Destructive and Non-Destructive) :

    1. Visual Dimension Test

    2. Mechanical examining like tensile, Elongation and reduction of area.

    3. Ultrasonic test

    4. Chemical examination analysis

    5. Hardness test

    6. Pitting protection test

    7. Penetrant Test

    8. Intergranular Corrosion Testing

    9. Impact analysis

    10. Metallography Experimental Test


    Sasa alloy’S Packaging:

    1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.

    2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,

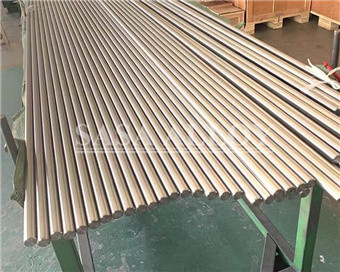

    Bright Titanium Gr.5 Bar Package     Titanium Gr.5 Round Bar package

    ASTM B348 Gr.4 Titanium Bars Application:

    Gas Processing Industries, Petrochemical Industries, Petrochemical Industries, Power Generation Industries, Food Processing Industries, Chemical Industries, Oil & Gas Industries, Fertilizers Industries, Sugar Industries.
