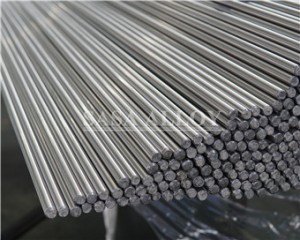

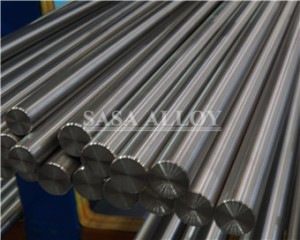

Nickel-Cobalt Alloy 556 Bar
Nickel-Cobalt Alloy 556 Bar (UNS R30556) is a solid-solution-strengthened alloy designed for outstanding resistance to oxidation and sulfidation at elevated temperatures. This alloy combines the strength of cobalt and nickel with the corrosion resistance of chromium and molybdenum, making it ideal for high-temperature industrial environments.
| 34CrNi3Mo steel round bar Specification: |
| Grade | 556 |
|---|---|
| Specification | AMS 5886, ASTM B574 / B575 |
| Round bar size | Diameter: 3mm~800mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Square bar size | 4mm*4mm~100mm*100mm |
| Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Bar size | 2mm~100mm |
| Finish | Bright, Polish, Rough Turned, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| 556 alloy steel rod Chemical Composition: |
| Grade | C | Mn | Si | Co | Ni | Fe | Cr | Mo |
| 556 | 0.10 | 1.5 | 0.4 | 20-23 | 18-22 | Bal | 22.0 | 9.0 |
| Alloy 556 Rod Mechanical Properties: |
| Yield Strength Rp0.2(MPa) | Tensile Strength Rm(MPa) | Elongation (%): | Density | Hardness |
| 350 | 760 | 35 | 8.29 g/cm³ | 200 HB |
| Applications of 34CrNi3Mo alloy steel bars |
-
Power and Energy: Gas turbines, heat recovery systems, boilers
-
Chemical Processing: Heat exchangers, reformer tubes, furnace trays
-
Marine & Offshore: Exhaust systems, hot gas ducts, scrubbers
-
Metallurgical & Thermal Equipment: Industrial furnaces, heat-treating baskets, fixtures
| FAQ |
Q1: What is Alloy 556?
A: Alloy 556 is a nickel-cobalt-chromium alloy designed for high-temperature and corrosion-resistant applications.
Q2: What is the standard of Alloy 556?
A: The alloy is designated as UNS R30556 and W.Nr. 2.4705.
Q3: What are its main properties?
A: Excellent oxidation and sulfidation resistance up to 1150°C, high strength, and good weldability.
Q4: Where is Alloy 556 used?
A: Commonly used in gas turbines, chemical equipment, furnaces, and marine exhaust systems.
Q5: What forms are available?
A: Supplied as bars, rods, plates, and custom sizes upon request.
| SASA ALLOY'S Quality Assurance |
1. Visual Dimension Test 2. Mechanical examining like tensile, Elongation and reduction of area. 3. Impact analysis 4. Chemical examination analysis 5. Hardness test 6. Pitting protection test 7. Penetrant Test 8. Intergranular Corrosion Testing 9. Roughness Testing 10. Metallography Experimental Test
| Why Choose Us |
1. You can get the perfect material according to your requirement at the least possible price. 2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical. 3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement) 4. We guarantee to give a response within 24hours(usually in the same hour) 5. Provide SGS TUV report. 6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations. 7.Provide one-stop service.
| Alloy bar Package: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. 2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
