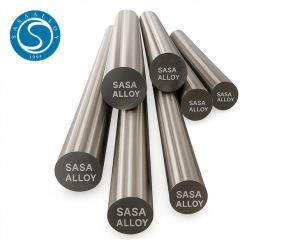

UNS N06059 Alloy 59 Round Bar
Alloy 59 steel bar, also known as UNS N06059 and DIN 2.4605, is a high-performance nickel-chromium-molybdenum alloy. It provides outstanding resistance to both oxidizing and reducing agents, making it one of the most reliable materials for aggressive chemical environments.
| Alloy 59 steel bar Specification: |
| Grade | Alloy 59 |
|---|---|
| Specification | ASTM B574 |
| Round bar size | Diameter: 3mm~800mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Square bar size | 4mm*4mm~100mm*100mm |
| Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Bar size | 2mm~100mm |
| Finish | Bright, Polish, Rough Turned, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| UNS N06059 round bar Chemical Composition: |
| Grade | C | Mn | Si | Cu | S | Fe | P | Ni | Cr | Co |
| alloy 59 | 0.01 | 0.5 | 0.1 | 0.50 | 0.01 | 1.5 | 0.03 | Balance | 22.0-24.0 | 0.3 |
| DIN 2.4605 bar Physical Properties: |
| Property | Value (Imperial) | Value (Metric) |
| Density | 537 lb/ft³ at 68°F | 8.6 g/cm³ at 20°C |
| Melting Range | 710-738°F | 1,310-1,360°C |
| Relative Magnetic Permeability at 20°C (68°F) | 1.001 | 1.001 |
| Thermal Conductivity at 68°F (20°C) | 6.01 BTU·in/sq.ft·h·°F | 10.4 W/m·K |
| Electrical Resistivity at 68°F (20°C) | - | 126 μΩ·cm |
| Modulus of Elasticity at 68°F (20°C) | 30.5 × 10⁶ psi | 210 GPa |
| Coefficient of Thermal Expansion (68-212°F/20-100°C) | 6.61 × 10⁻⁶/°F | 11.9 × 10⁻⁶/K |
| Equivalent Grades for alloy 59 Bar: |
| STANDARD | WERKSTOFF NR. | UNS |
| alloy 59 | 2.4605 | N06059 |
| FAQ |
Q1: What is Alloy 59 steel bar mainly used for?
A1: It is used in highly corrosive environments such as chemical processing, marine applications, and pollution control equipment.
Q2: Is Alloy 59 similar to Hastelloy C-22 or C-276?
A2: Alloy 59 has comparable corrosion resistance but often provides better overall performance in mixed oxidizing and reducing conditions.
Q3: What standards are available for Alloy 59 bar?
A3: Alloy 59 bars are supplied under ASTM B574, UNS N06059, DIN 2.4605, and can be customized to customer requirements.
Q4: Can Alloy 59 steel bar be welded?
A4: Yes, Alloy 59 exhibits excellent weldability with conventional welding methods, maintaining its corrosion resistance.
| SASA ALLOY'S Quality Assurance |
1. Visual Dimension Test 2. Mechanical examining like tensile, Elongation and reduction of area. 3. Impact analysis 4. Chemical examination analysis 5. Hardness test 6. Pitting protection test 7. Penetrant Test 8. Intergranular Corrosion Testing 9. Roughness Testing 10. Metallography Experimental Test
