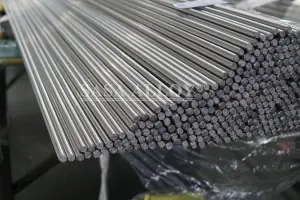

Nimonic 80/80A Bar Rod

Short Description:

Nimonic Alloy 80/80A Round Bar Rod distributor, Nimonic 80/80A round bar Stockist, Nimonic 80/80A Flat Bar, Nimonic 80/80A Hex Bar Suppliers in China, Nimonic 80/80A Rod, Nimonic 80/80A Bright Bar manufacturer in China. Alloy 80a (alternatively known by Special Metals trade name Nimonic 80a) is a nickel chromium alloy similar to Alloy 75 round bar but made precipitation hardenable by additions of aluminium and titanium. Nimonic 80A Round Bar has good corrosion and oxidation resistance and hig...


  • FOB Price: Ton/Ton 2000-5000USD
  • Min.Order Quantity: As Customer Required
  • Supply Ability: 2000Tons Per Month
  • Port: Shanghai Ningbo
  • Payment Terms: T/T L/C Westerrn Union
  • Product Detail

    Product Tags

    Nimonic Alloy 80/80A Round Bar Rod distributor, Nimonic 80/80A round bar Stockist, Nimonic 80/80A Flat Bar, Nimonic 80/80A Hex Bar Suppliers in China, Nimonic 80/80A Rod, Nimonic 80/80A Bright Bar manufacturer in China.

    Alloy 80a (alternatively known by Special Metals trade name Nimonic 80a) is a nickel chromium alloy similar to Alloy 75 round bar but made precipitation hardenable by additions of aluminium and titanium. Nimonic 80A Round Bar has good corrosion and oxidation resistance and high tensile and creep rupture properties at temperatures up to 1500 deg F.



    Nimonic 80/80A round bar Specification

    Grade Nimonic 80/80A – UNS
    Specification ASTM B637
    Standard ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS
    ASTM B166, ASTM B160, ASTM B164, ASTM B446, ASTM B637, ASTM B408, ASTM B425, ASTM B574, ASTM B335, ASTM B473, ASTM B649
    Nimonic 80/80A Round bar size Diameter: 3mm~800mm
    Nimonic 80/80A Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
    Nimonic 80/80A Square bar size 4mm*4mm~100mm*100mm
    Nimonic 80/80A Flat bar size Thickness: 2mm~100mm
    Width: 10mm~500mm
    Nimonic 80/80A Hex Bar size 2mm~100mm
    Nimonic 80/80A Billet Size 1/2″ to 495mm Diameter
    Nimonic 80/80A Rectangles Size 33mm x 30mm to 295mm x 1066mm
    LENGTHS 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS
    Nimonic 80/80A Round Bar Standard Dimensions  Diameter / Height:
    As the customer required
    Finish Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black
    Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
    Surface Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
    Condition Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar
    Technique Nimonic 80/80A Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod
    Form Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc.

    Our Nimonic 80/80A round bar conforms to NACE MR0175/ISO 15156

    Type SIZES (mm) SIZES (Inches) ISO Tolerance
    Cold Drawn and Polish 3.00 – 75.00 1/8” – 3.00” h8-h9-h10-h11, ASTM B637
    Cold Drawn and Ground 10.00 – 75.00 5/6” – 2.50” h8-h9-h10-h11
    Peeled and Polished 40.00 – 150.00 1.50” – 6.00” h11, ASTMA-484 h11-DIN 1013
    Peeled and Ground 20.00 – 50.00 3/4″ – 2.00” h9-h10-h11, ASTM B637

    Nimonic 80A Round Bar Stock List

    Alloy Product form Dimension
    ALLOY 80A (70 Ni/20 Cr/2 Co) Round bar; solution annealed, centerless ground Dia=10.0 mm, Weight=0.65 kg/m
    ALLOY 80A (70 Ni/20 Cr/2 Co) Round bar; hot rolled, solution annealed, centerless ground Dia=16.0 mm, Weight=1.7 kg/m
    ALLOY 80A (70 Ni/20 Cr/2 Co) Round bar; solution annealed, ground tol. h9 Dia=20.0 mm, Weight=2.57 kg/m
    NIMONIC 80A (70 Ni/20 Cr/2 Co) Round bar; solution treated Dia=25.4 mm, Weight=4.17 kg/m
    NIMONIC 80A (70 Ni/20 Cr/2 Co) Round bar; extruded, machining quality, solution treated Dia=28.0 mm, Weight=5.0 kg/m
    NIMONIC 80A (70 Ni/20 Cr/2 Co) Round bar; extruded, machining quality, solution treated Dia=35.0 mm, Weight=8.0 kg/m
    ALLOY 80A (75 Ni/20 Cr) Round bar; machined, solution treated Dia=40.0 mm, Weight=10.2 kg/m
    NIMONIC 80A (70 Ni/20 Cr/2 Co) Round bar; extruded, machining quality, machined, solution treated Dia=40.0 mm, Weight=10.2 kg/m
    NIMONIC 80A (70 Ni/20 Cr/2 Co) Round bar; extruded machining, machined, solution treated Dia=45.0 mm, Weight=13.0 kg/m
    NIMONIC 80A (70 Ni/20 Cr/2 Co) Round bar; hot rolled, solution annealed, machined Dia=50.8 mm, Weight=16.8 kg/m
    NIMONIC 80A (70 Ni/20 Cr/2 Co) Round bar; extruded, machining quality, solution treated Dia=57.2 mm, Weight=21.05 kg/m
    ALLOY 80A (70 Ni/20 Cr/2 Co) Round bar; hot rolled, solution annealed, machined Dia=63.0 mm, Weight=25.53 kg/m
    NIMONIC 80A (70 Ni/20 Cr/2 Co) Round bar; hot forged, solution annealed, peeled Dia=80.0 mm, Weight=43.4 kg/m
    NIMONIC 80A (70 Ni/20 Cr/2 Co) Round bar; hot finished, machined, solution treated Dia=101.6 mm, Weight=67.2 kg/m
    NIMONIC 80A (70 Ni/20 Cr/2 Co) Wire; cold drawn, pickled, solution treated Dia=3.0 mm, Weight=0.06 kg/m



    Nimonic 80/80A bar mechanical properties

    Specific Gravity

    8.19 g/cm3

    NIMONIC 80A Round, Bright, Hex, Threaded Bar Chemical Composition (Wt %)

      Ni Cr Fe C Mn Si S Ti Al Cu B Zr Co
    Min Bal 18 - - - - - 1.8 1.0 - - - -
    Max - 21 3.0 0.10 1.0 1.0 0.015 2.7 1.8 0.2 0.008 0.15 2.0

    NIMONIC 80A Round Bars Mechanical & Physical Properties

    0.2% Proof Stress Tensile Strength Elongation Reduction of area Hardness
    MPA MPA % % HV
    Min Min Min Min Min
    620 1000 20 12 300

    NIMONIC 80A Bars Equivalent Grades

    • BS 3076 (NA20)
    • BS HR1
    • BS HR601
    • ASTM B637
    • UNS N07080
    • MSRR 7011
    • W.Nr 2.4952
    • W.Nr 2.4631
    • DIN 17742



    NIMONIC 80A Round Bar Typical Applications

    • NIMONIC 80A Round Bar for Bolts
    • NIMONIC 80A Flat Bar for Exhaust valves
    • NIMONIC 80A Hex Bar for Gas turbine components
    • NIMONIC 80A Square Bar for Tube supports in nuclear steam generators
