Inconel 601 Fasteners

Short Description:

Specifications of Inconel 601 fasteners: Grade 600,601,625,X750,etc. Standard ASTM B166 Length 3 mm to 200 mm, customizable Size M3 – M56 | 3/6″ to 2″ | Custom Sizes Screw Type Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc. Bolts Types Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolts, T…

Grade:: 600,601,625 etc
Standard:: ASTM B 166
Surface:: Blackening, Cadmium zinc plated
Diameter:: Not applicable

Send email to us

Product Detail

Product Tags

Specifications of Inconel 601 fasteners:

Grade	600,601,625,X750,etc.
Standard	ASTM B166
Length	3 mm to 200 mm, customizable
Size	M3 – M56 \| 3/6″ to 2″ \| Custom Sizes
Screw Type	Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc.
Bolts Types	Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolts, T Bolts, U Bolts, Lag Bolts, Counter sunk Bolts etc.
Washer Types	Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc.
Studs Types	Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc.
Nut Types	Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc.
Mill Test Certificate	EN 10204 3.1 or EN 10204 3.2

Equivalent Grades of Inconel Alloy 601 FASTENER :

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 601	2.4851	N06601	NCF601	NA49	XH60BT	NC23FeA	NiCr23Fe

CHEMICAL COMPOSITION OF Inconel Alloy 601 FASTENER:

Grade	Fe	Ni	Mn	Cu	Si	C	S	Cr
601	Bal	58.0-63.0	1.0	1.0	0.50	0.10	0.015	21.0-25.0

Mechanical Properties of Inconel Alloy 601 FASTENER :

Element	Density	Melting Point	Tensile Strength	Yield Strength	Elongation
601	8.1 g/cm3	1411 °C	Psi – 80,000 , MPa – 550	Psi – 30,000 , MPa – 205	30%

Inconel Alloy 601 FASTENER Types:

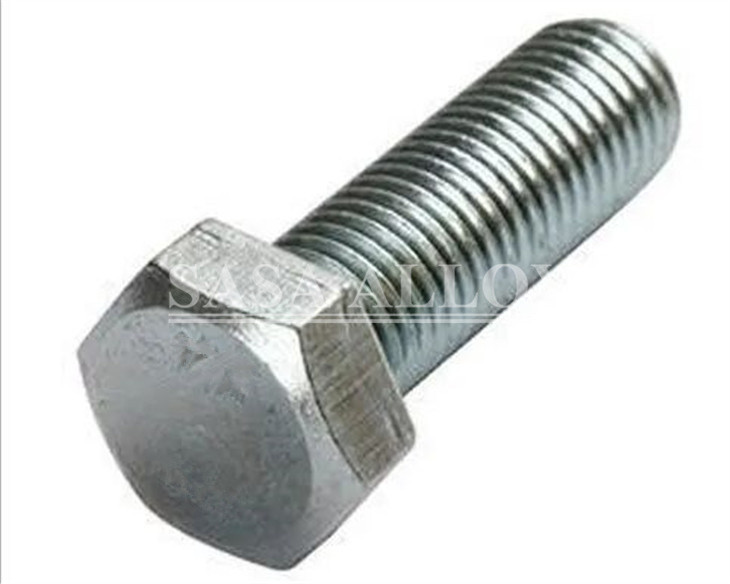

Alloy 601 Caps	Alloy 601 Thread Stud	Alloy 601 Hex Bolts

Alloy 601 Washers	Alloy 601 Dome Nut	Alloy 601 Wing Nut

SASA ALLOY'S Quality Assurance:

1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Impact analysis
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Roughness Testing
10. Metallography Experimental Test
