Titanium Bar
Titanium Aircraft Grade Bar retain the same strength and corrosion resistance, but takes on the greater flexibility and malleability of the metal. Our Titanium round bar, Titanium Flat Bar, Titanium Hex Bar and Titanium Hexagonal Bar typically contain traces of aluminum, molybdenum, vanadium, niobium, tantalum, zirconium, manganese, iron, chromium, cobalt, nickel, and copper. Our Titanium Square Bar, Titanium Forged Bar and Titanium Hex Rod make it preferable material used by aerospace and many other industries. Our Aircraft Titanium Bar has the chemical symbol Ti.

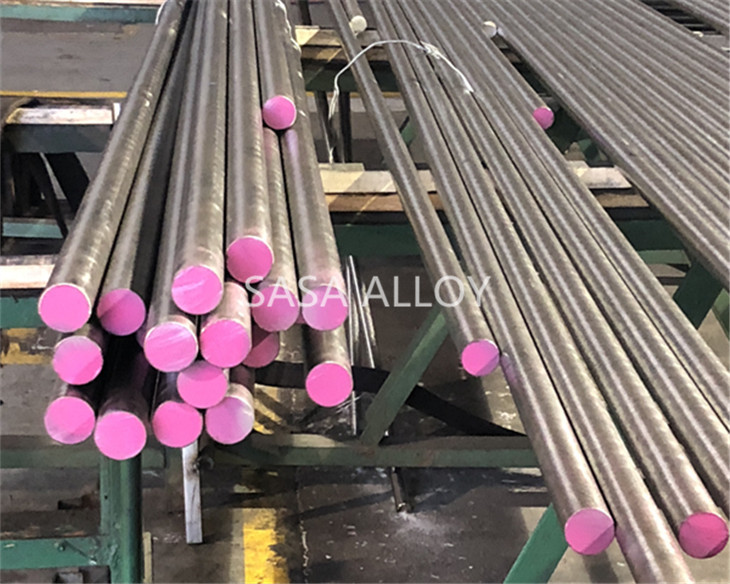

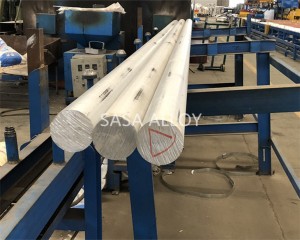

Our Titanium Round Bar are considered to be one of the strongest metals. There are six grades of material of our Titanium STA Bar, Titanium STA Round Bar and Titanium Round Rod (grades 1, 2, 3, 4, 7 and 11) and 4 varieties of titanium alloys. These applications range from medical implants to airplanes and ships. Our Titanium Welding Rod and Titanium Rod strong and corrosive resistant.
Titanium STA Bar, Titanium STA Round Bar, AMS 4965, MIL-T-9047A AB-1 STA, AMS-T-9047 STA
| Grades of Aircraft Grade Titanium Bar |
|
|---|---|
| Specification | ASTM B348 |
| Titanium Round bar size | Diameter: 3mm~800mm |
| Titanium Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Titanium Square bar size | 4mm*4mm~100mm*100mm |
| Titanium Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Titanium Hex Bar size | 2mm~100mm |
| Titanium Billet Size | 1/2″ to 495mm Diameter |
| Titanium Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| Titanium Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Titanium Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Titanium Bar Type | Drawn Bar, Rolled Bar, Forged Bar, GFM Forged Bar, Open Die Bar, Forged Stepped Shafts, Forged Flat Bar, Forged Square Bar |
| Also Check price list of | Inconel Round Bar, Inconel 625 Round Bar, Inconel 718 Round Bar, Hastelloy Round Bar, Monel Round Bar, Titanium Round Bar, Copper Nickel Bar, Stainless Steel Round Bar |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Our Titanium round bar conforms to NACE MR0175/ISO 15156 | |

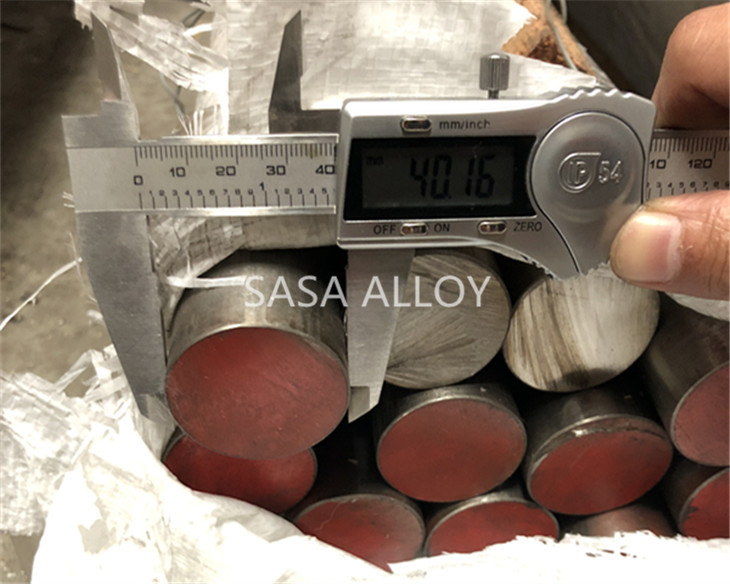

Titanium round bar Stock range
- Standard sizes range from 8 mm (5/16 in) to 200 mm (8 in) diameter
- Many non-standards are available in both metric and imperial diameters and sizes
Titanium round bar Cut to size
- All Titanium Bars can be cut to size to tolerances of ± 1.0 mm (0.040 in)
Commercially pure and alloyed grades are also available. Stock of Grade Solid Titanium Round Bar, for Strength Lightweight Corrosion and Heat Resistance
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8” – 3.00” | h8-h9-h10-h11, ASTM B348 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6” – 2.50” | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50” – 6.00” | h11, ASTMA-484 h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00” | h9-h10-h11, ASTM B348 |
| ROD, BAR & FORGINGS | ||
|---|---|---|
| Sizes: Bar & RodFull Range of sizes in all grades |
GRADE | SPECIFICATIONS |
| 6AL-4V, 6AL-4V ELI | AMS-4928, 4930,4965, 4967, MIL-T-9047, AMS-T-9047, ASTM-F-367 |
|
| 6AL-2SN-4ZR-2MO | AMS04975, MIL-T-9047, AMS-T-9047 | |
| 6AL-6V-25SN | AMS-4978, MIL-T-9047, AMS-T-9047 | |
| 5AL-2.55N | AMS-4926, 4966, MIL-T-9047, AMS-T-9047, B50TF22 | |
| 8AL-1MO-IV | AMS-4972, 4973, MIL-T-9047, AMS-T-9047 | |
| CP-GRADES 1,2,3,4,7 | AMS-4921, MIL-9047, ASTM-B-348, ASTM-F-67 | |
| Grade | Trade Name |
|---|---|
| Titanium Grade 1 | |
| Titanium Grade 2 | |
| Titanium Grade 3 | |
| Titanium Grade 4 | |
| Titanium Grade 5 | 6AL-4V |
| Titanium Grade 6 | 5AL2.5Sn |
| Titanium Grade 7 | |
| Titanium Grade 9 | 3AL2.5V |
| Titanium Grade 19 | Beta C |
| Titanium Grade 23 | (6AL4V) Eli |
| Titanium 6AL 2Sn 4Zr 2Mo | 2Sn 4Zr 2Mo |
| Titanium 6AL 6V 2Sn | 6V 2Sn |
| Titanium 10V 2Fe 3Al | 2Fe 3Al |
| Titanium 8Al 1Mo 1V | 1Mo 1V |
| Titanium 6AL 2Sn 4Zr 6Mo | 2Sn 4Zr 6Mo |
Titanium bars Applications & Uses
Titanium bars are used extensively in medical, aerospace and chemical industries, providing requisite strength to weight properties need to ensure extreme conditions and heavy usage without corrosion or failure. Steel Tubes China also provide titanium rods for use in advanced electronic products for the consumer market. Some examples of where are titanium bars are being used:
- Dental Fittings
- Structural Implants
- Prosthetics
- Fasteners for aerospace
