Inconel 625 Wire
Specifications of Inconel 625 Wire:

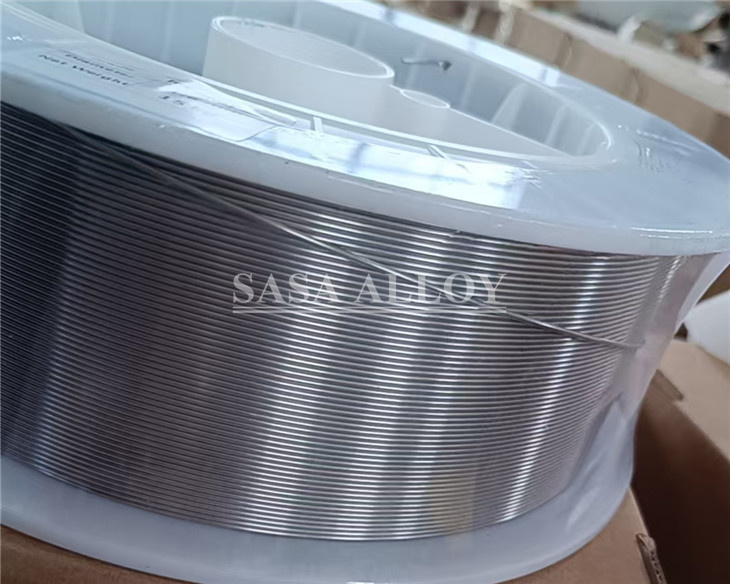

The production photo shows Inconel 625 wire supplied in a clean, evenly wound coil so surface condition and handling quality can be checked before shipment.
| Specifications | ASTM B446 |
|---|---|
| Dimensions | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Length | 100 mm TO 6000 mm, customizable |
| Diameter | 10 mm To 100 mm or as per client requirement |
| Density | 8.4g/cm3 |
|
580-750 |
|
as standard |
|
30 |
| Surface | Polished bright, Smooth |
| Technique | Cold Rolled, hot rolled |
| Condition | M, Y, 1/2Hard |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
Alloy 625 Wire Equivalent Grades:
| STANDARD | Inconel 625 |
|---|---|
| WERKSTOFF NR. | 2.4856 |
| UNS | N06625 |
| JIS | NCF 625 |
| BS | NA 21 |
| GOST | ХН75МБТЮ |
| AFNOR | NC22DNB4M |
| EN | NiCr22Mo9Nb |
CHEMICAL COMPOSITION OF UNS N06625 Wire:
| Grade | Inconel 625 |
|---|---|
| C | 0.10 max |
| Mn | 0.50 max |
| Si | 0.50 max |
| P | 0.015 |
| S | 0.15 min |
| Cr | 20.0–23.0 |
| Fe | 5.0 max |
| Ni | 58.0 min |
| Al | 0.40 |
| Ti | 0.40 |
Inconel 625 cold drawn wire Mechanical Properties:
| Density | 8.4 g/cm3 |
|---|---|
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 1,35,000 , MPa – 930 |
| Yield Strength (0.2%Offset) | Psi – 75,000 , MPa – 517 |
| Elongation | 42.5 % |

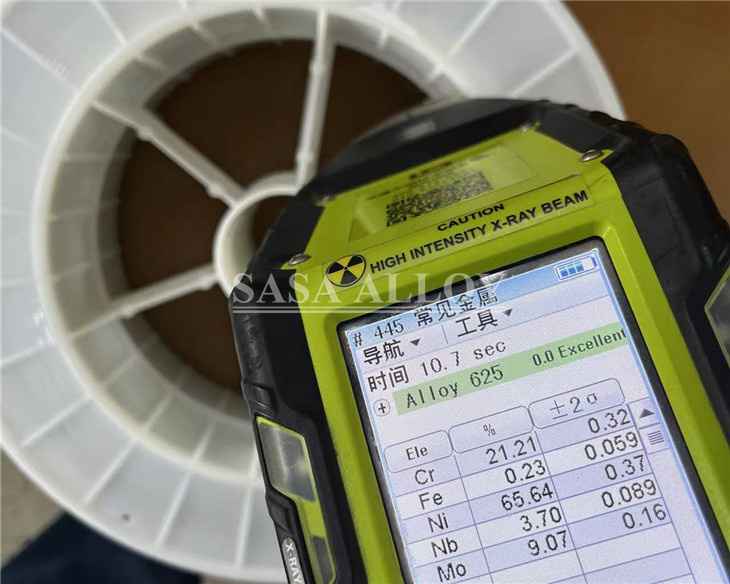

Nickel Alloy 625 Wire PMI Test:
Positive Material Identification (PMI) checks the alloy chemistry against Inconel 625 / UNS N06625 requirements and helps prevent grade mix-ups.
Applications of NiCrMoNb 625 Wire:
-
1.Aerospace: Engine components, heat shields, high-temp springs
-
2.Marine: Anti-corrosion fasteners, cable braiding, seawater-resistant parts
-
3.Oil & Gas: Downhole springs, sealing wires, NACE-compliant uses
-
4.Nuclear & Power: Heat exchanger wire, reactor components
-
5.Chemical Processing: Wire mesh, reactor baskets, acid-resistant fittings
-
6.Welding (ERNiCrMo-3): TIG/MIG filler wire for Inconel & stainless steel
-
7.High-Temp Heating: Electric heating coils, support wires
Why Choose Us
Discuss your Inconel 625 wire requirements with SASAALLOY, from the wire specification to the documentation and packaging needed for your order.
- Order-specific specifications. Share the diameter, tolerance, delivery condition and coil or spool requirements so the quotation can address your intended processing and application.
- Documentation agreed in advance. Identify the material certificate, traceability records and inspection documents you need. Confirm their scope and availability before placing the order.
- Packaging suited to your handling needs. Discuss coil protection, package identification and transport requirements to reduce avoidable handling problems.
- Clear quotation terms. Compare the quoted quantity, packaging, delivery basis and destination together. Confirm price, lead time and any additional inspection requirements with the quotation.

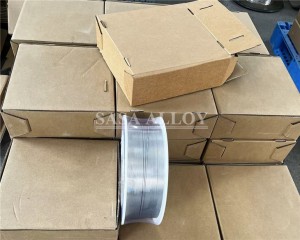

Inconel 625 coil wire Packing
Protective cartons, sealed inner wrapping and reinforced export cases reduce moisture, impact and handling damage while preserving package identification.
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
