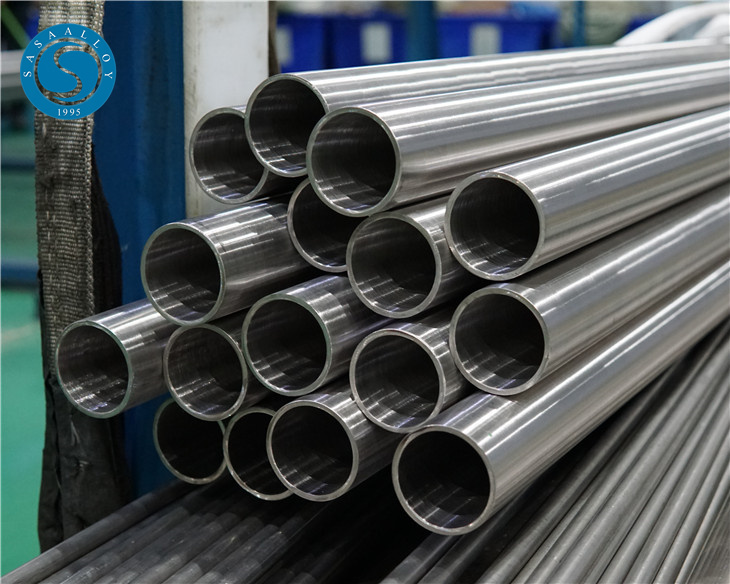

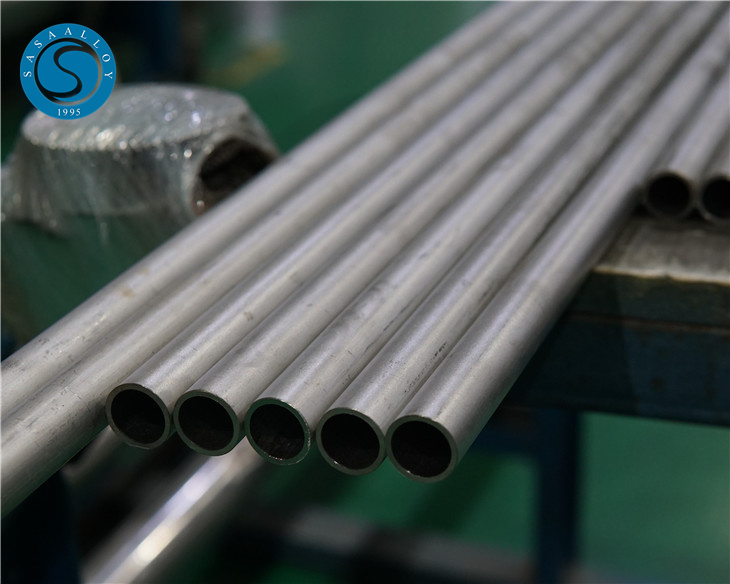

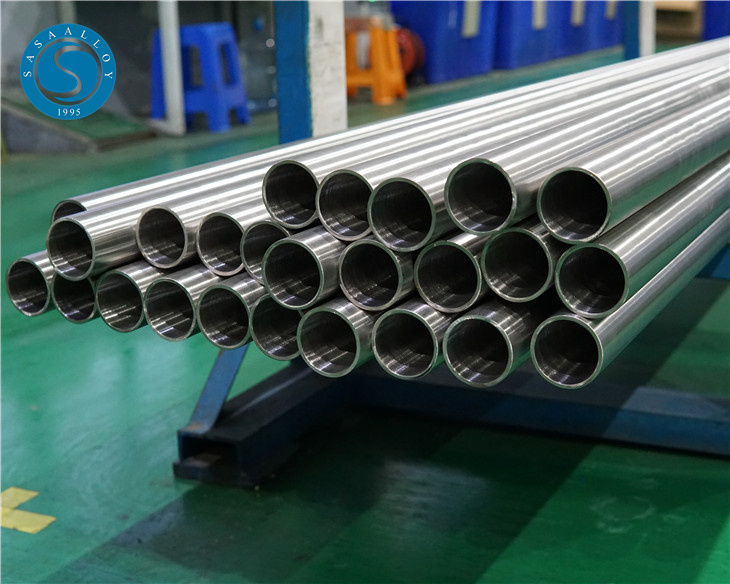

Inconel 617 Pipe
Inconel 617 pipe is a high-performance nickel-chromium-cobalt-molybdenum alloy pipe designed for extreme environments. It combines excellent high-temperature strength, outstanding oxidation resistance up to 1100°C, and superior corrosion resistance in aggressive atmospheres. With reliable weldability and long service life, Inconel 617 seamless and welded pipes are widely used in gas turbines, petrochemical processing, power generation, and aerospace industries.
| UNS N06617 pipe Specification: |
| Grade | 617 |
|---|---|
| Specification | ASTM B167 |
| Size Range | 15″NB – 150″NB |
| Outer Diameter | 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness. |
| Schedule | SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| 617 Inconel Pipes and Tubes Equivalent Standard: |
| STANDARD | UNS | WNR. |
| Alloy 617 | N06617 | 2.4663 |
| Inconel 617 seamless pipe Chemical Composition: |
| Grade | C | Mn | Si | S | Al | Fe | Ni | Cr | Mo |
| 617 | 0.05-0.15 | 1.0 | 1.0 | 0.015 | 0.8-1.5 | 3.0 | 44.5 | 20.0-24.0 | 8.0-10.0 |
| Alloy 617 nickel pipe Mechanical Behavior: |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Applications of 2.4663 alloy steel pipe |
-
Gas turbines – combustion chambers, transition liners, and other hot components
-
Power plants – superheaters, reheaters, and heat exchangers
-
Petrochemical industry – process piping in hydrogen reformers and cracking units
-
Aerospace – engine exhaust systems and structural components
-
Nuclear industry – heat transfer and steam generator tubing
| FAQ |
Q1: What is Inconel 617 pipe used for?
A1: It is mainly used in high-temperature and corrosive environments, such as gas turbines, petrochemical plants, and power generation equipment.
Q2: What standards cover Inconel 617 pipes?
A2: ASTM B167 / B829, ASME SB167 / SB829 are the main international standards.
Q3: Does Inconel 617 pipe resist oxidation?
A3: Yes, it offers excellent oxidation resistance up to 1100°C, making it suitable for long-term high-heat applications.
Q4: Can Inconel 617 pipe be welded?
A4: Yes, it has good weldability and can be welded using standard nickel alloy welding techniques.
Q5: What sizes are available?
A5: Pipes can be supplied in custom diameters and wall thicknesses ranging from small tubing to large industrial pipelines.
| SASA ALLOY’S Quality Assurance |
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Impact analysis
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Roughness Testing
10. Metallography Experimental Test
| Why Choose Us |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours(usually in the same hour)
5. Provide SGS TUV report.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
7.Provide one-stop service.
| Alloy bar Package: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
