GH3536 Bar – Hastelloy X UNS N06002 Nickel Alloy Bar
Product Short Description
GH3536 Bar, also known as Hastelloy X Bar, UNS N06002 Bar and Alloy X Bar, is a nickel-chromium-iron-molybdenum high temperature alloy bar designed for excellent oxidation resistance, high-temperature strength and good fabricability. It provides reliable performance in high-temperature environments and is widely used in gas turbine components, combustion chambers, furnace parts, aerospace equipment, petrochemical systems and industrial heat-resistant components.
SASA ALLOY supplies GH3536 bars in hot rolled, forged, peeled, turned, ground, polished and machined conditions according to customer requirements. Products can be supplied with chemical composition analysis, mechanical testing, PMI testing, ultrasonic testing, dimensional inspection, surface inspection, EN 10204 3.1 material certificate and full heat number traceability.
- Product Name: GH3536 Bar – Hastelloy X UNS N06002 Nickel Alloy Bar
- Material Grade: GH3536 / Hastelloy X / UNS N06002 / Alloy X
- Product Type: Nickel-Chromium-Iron-Molybdenum High Temperature Alloy Bar
- Main Feature: Excellent oxidation resistance, high-temperature strength and good thermal stability
- Applications: Gas turbine, combustion chamber, furnace parts, aerospace, petrochemical and high-temperature equipment
Product Parameters
| Item | Specification |
|---|---|
| Product Name | GH3536 Bar |
| Material Grade | GH3536 / Hastelloy X / UNS N06002 / Alloy X |
| Material Type | Nickel-Chromium-Iron-Molybdenum High Temperature Alloy |
| Product Form | Round Bar, Forged Bar, Peeled Bar, Turned Bar, Ground Bar, Custom Machined Bar |
| Diameter | 6 mm – 300 mm or customized |
| Length | 500 mm – 6000 mm or cut to size |
| Surface Condition | Hot Rolled, Forged, Peeled, Turned, Ground, Polished, Machined |
| Heat Treatment | Solution Annealed, Annealed or as required |
| Standard | UNS N06002, ASTM B572, ASTM B435, AMS 5754, AMS 5536, EN, DIN, JIS, GB or customer specification |
| Inspection | Chemical Analysis, Mechanical Test, PMI Test, UT Test, Hardness Test, Dimensional Inspection |
| Certificate | EN 10204 3.1 Material Certificate available |
| Processing Service | Cutting, Sawing, Turning, Grinding, Polishing, CNC Machining, Custom Size Processing |
Chemical Composition
GH3536 / Hastelloy X is a nickel-chromium-iron-molybdenum alloy with excellent high-temperature oxidation resistance and good mechanical strength. The following chemical composition is for general reference only. Final composition should be confirmed according to the applicable standard, purchase order and mill test certificate.
| Element | Ni | Cr | Fe | Mo | Co | W | C | Mn | Si | P | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Content % | Balance | 20.5 – 23.0 | 17.0 – 20.0 | 8.0 – 10.0 | 0.5 – 2.5 | 0.2 – 1.0 | 0.05 – 0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 |
Mechanical Properties
Mechanical properties of GH3536 Bar may vary depending on diameter, production method, heat treatment condition and applicable standard. The alloy is mainly selected for high-temperature strength, oxidation resistance and stable performance in thermal service environments.
| Condition | Tensile Strength | Yield Strength | Elongation | Hardness | Typical Use |
|---|---|---|---|---|---|
| Solution Annealed / Typical | 690 MPa min | 275 MPa min | 30% min | According to condition | High-temperature and oxidation-resistant components |
| Forged / Custom | According to order requirement | According to order requirement | According to order requirement | According to order requirement | Heavy-duty bars and machined components |
| Machined / Ground | According to drawing | According to drawing | According to drawing | According to drawing | Precision machined high-temperature parts |
Note: Final mechanical properties should be confirmed according to ASTM, AMS, customer specification, heat treatment condition and material test certificate.
Common Size Table
| Diameter | Length | Surface | Availability |
|---|---|---|---|
| 6 – 20 mm | 500 – 3000 mm | Hot Rolled / Ground / Polished | Production / Customized |
| 20 – 80 mm | 1000 – 6000 mm | Hot Rolled / Peeled / Turned | Production |
| 80 – 150 mm | 1000 – 6000 mm | Forged / Turned / Ground | Made to Order |
| 150 – 300 mm | Cut to Size | Forged / Machined | Custom Production |
Different Specifications Comparison
| Type | Size Range | Surface Condition | Typical Use |
|---|---|---|---|
| GH3536 Round Bar | 6 – 100 mm | Hot Rolled / Peeled / Ground | Gas turbine, furnace parts and industrial components |
| GH3536 Forged Bar | 80 – 300 mm | Forged / Turned / Machined | Aerospace, combustion chamber and heavy-duty high-temperature parts |
| GH3536 Machined Bar | According to drawing | Ground / Polished / CNC Machined | Precision machined high-temperature components |
| GH3536 Cut Bar | Cut to length | Sawed / Ground | Machining blanks and maintenance replacement parts |
Equivalent Standards and International Names
GH3536 is commonly considered equivalent to Hastelloy X / UNS N06002 type nickel alloy. Customers may search for GH3536 Bar, Hastelloy X Bar, Alloy X Bar, UNS N06002 Bar or nickel-chromium-molybdenum high-temperature alloy bar.
| Country / Standard | Common Name | Equivalent Grade |
|---|---|---|
| China | GH3536 | Nickel-Chromium-Iron-Molybdenum High Temperature Alloy |
| UNS | UNS N06002 | Hastelloy X |
| Commercial Name | Hastelloy X / Alloy X | GH3536 Equivalent |
| ASTM | ASTM B572 / ASTM B435 | Nickel Alloy X Bar / Plate Reference |
| AMS | AMS 5754 / AMS 5536 | High Temperature Nickel Alloy |
Production Process Flow
The production process of GH3536 Bar requires strict control of raw material selection, melting, hot working, heat treatment, machining and inspection to ensure stable high-temperature performance, oxidation resistance and mechanical reliability.
| Process Step | Description | Quality Control Point |
|---|---|---|
| Raw Material Selection | Select qualified GH3536 / Hastelloy X raw materials | Raw material certificate and traceability |
| Melting | Control alloy chemistry and impurity elements | Chemical composition analysis |
| Forging / Hot Rolling | Produce bar shape and improve internal structure | Temperature control, forging ratio and dimensional control |
| Solution Annealing | Heat treatment to stabilize structure and performance | Temperature, holding time and cooling method |
| Inspection | Final inspection before shipment | PMI, UT, dimension, surface and certificate review |
Product Inspection
1. Chemical Composition Inspection
Chemical composition analysis is performed to verify nickel, chromium, iron, molybdenum and other alloying elements. This helps confirm that the bar meets GH3536 / Hastelloy X / UNS N06002 requirements.
2. Mechanical Properties Testing
Tensile strength, yield strength, elongation and hardness can be tested according to customer requirements and applicable standards.
3. Ultrasonic Testing
UT testing can be performed to check internal soundness of forged or large-size GH3536 bars, especially for aerospace, gas turbine and critical industrial components.
4. PMI Testing and Dimensional Inspection
PMI testing helps verify material grade and prevent material mix-up. Diameter, length, straightness, tolerance and surface condition are inspected before shipment.

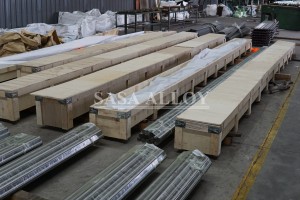

Product Packaging
SASA ALLOY provides export-grade packaging for GH3536 Bars to protect the material during sea, air and land transportation.
- Bundle Packing: Suitable for long bars and batch shipments.
- Plastic Film Protection: Applied to polished or machined surfaces to reduce scratches.
- Waterproof Wrapping: Used to protect bars from moisture during transportation.

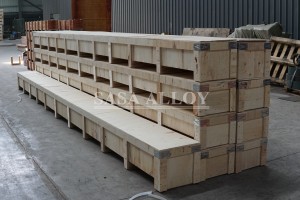

- Wooden Case Packaging: Suitable for precision machined bars or export shipments.
- Clear Marking: Grade, heat number, size, quantity and customer PO number can be marked on labels.
Applications
GH3536 Bar is widely used in high-temperature and oxidation-resistant applications where thermal stability, fabricability and mechanical reliability are required.
| Industry | Typical Applications | Why GH3536 Is Used |
|---|---|---|
| Aerospace | Combustion chambers, exhaust components, engine parts | Excellent oxidation resistance and high-temperature strength |
| Gas Turbine | Turbine components, hot gas ducting and support parts | Stable performance in high-temperature gas environments |
| Industrial Furnace | Furnace parts, heat treatment fixtures, radiant tubes | Resistance to oxidation and thermal exposure |
| Petrochemical | High-temperature process components, supports and machined parts | Good corrosion resistance and mechanical stability |
| Industrial Machinery | High-temperature mechanical parts and custom components | Good workability and reliable high-temperature performance |
Why Choose SASA ALLOY?
- Professional supplier of GH3536 / Hastelloy X / UNS N06002 nickel alloy bars
- Customized diameter, length, surface condition and heat treatment available
- Support for ASTM, AMS, UNS, EN, DIN, JIS, GB and customer specifications
- Material traceability with heat number control
- EN 10204 3.1 material certificate available
- Chemical analysis, mechanical testing, PMI testing, UT testing and dimensional inspection support
- Export packaging suitable for international transportation
- Suitable for aerospace, gas turbine, furnace, petrochemical and high-temperature industrial applications
FAQ
What is GH3536 Bar?
GH3536 Bar is a nickel-chromium-iron-molybdenum high-temperature alloy bar commonly considered equivalent to Hastelloy X / UNS N06002. It is used for oxidation-resistant and high-temperature applications.
Is GH3536 the same as Hastelloy X?
GH3536 is commonly regarded as the Chinese designation corresponding to Hastelloy X / UNS N06002 type alloy. Final equivalence should be confirmed by chemical composition, standard and mill test certificate.
Can SASA ALLOY provide custom size GH3536 bars?
Yes. SASA ALLOY can supply GH3536 bars in customized diameter, length, surface condition and heat treatment condition according to customer requirements.
What inspections can be provided?
Chemical analysis, mechanical testing, PMI testing, UT testing, hardness testing, dimensional inspection and EN 10204 3.1 material certificate can be provided according to order requirements.
What are the main applications of GH3536 Bar?
GH3536 Bar is mainly used for aerospace components, combustion chambers, gas turbine parts, furnace components, petrochemical equipment and high-temperature industrial machinery.
Contact Us
If you are looking for GH3536 Bar, Hastelloy X Bar, UNS N06002 Bar or customized high-temperature nickel alloy bars, please contact SASA ALLOY with your required grade, standard, diameter, length, heat treatment condition, surface condition, quantity and inspection requirements. Our team can provide professional material solutions for high-temperature nickel alloy applications.
