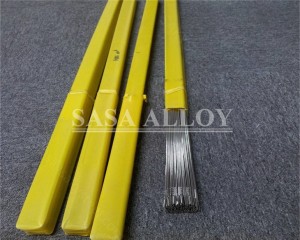

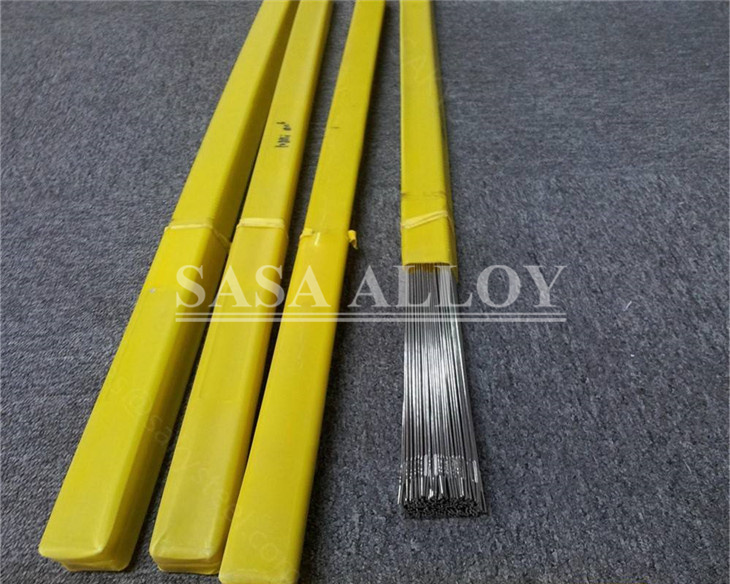

SNi6625 Inconel625 welding Rod
Alloy 625 Wire Descriptionbutton
Alloy 625 is a non-magnetic, corrosion and oxidation resistant, nickel-chromium alloy. This material can be used because of its high strength, excellent uniform corrosionresistance, resistance to stress cracking and excellentpitting resistance in 500°-600°F (260-316°C) water.
Its outstanding strength and toughness in the temperature range from cryogenic to 2000°F (1093°C) are derived primarily from the solid solution effects of the refractory metals columbium and molybdenum in a nickel-chromium matrix. The alloy has excellent fatigue strength and stress corrosion cracking to chloride ions.
| Specifications of ErNiCrMo-3 Inconel 625 welding rod: |
Specifications : AWS A5.14：2005~GB/T15620-2008
Grade: ErNiCrMo-3/Inconel625
Diameter : 3.2mm 2.0mm 1.6mm 1.2mm 1mm
Surface Finish : Bright
Forms: Continuous Coils, Cut to lengths, Precision cutting
| UNS N06625 Welding Wire Equivalent : |
| Grade | UNS | Werkstoff NR. | BS | AFNOR | JIS | GOST | EN |
|---|---|---|---|---|---|---|---|
| Inconel 625 Wire | N06625 | 2.4856 | NA 21 | NC22DNB4MNiCr22Mo9Nb | NCF 625 | ХН75МБТЮ | NiCr23Fe |
| SNi6625 Chemical Composition and Mechanical properties : |
| Grade | C | Mn | Fe | Si | Cu | Ni | Al | Ti | Cr | Nb | Mo |
| SNi6625 | 0.1 max | 0.5max | 0.5 max | 0.5 max | 0.5 max | 58.0 | 0.4 max | 0.4 max | 20.0 – 23.0 | 3.0 – 4.2 | 8.0 – 10.0 |
| DIN 2.4856 Tig Rod Mechanical Properties : |
| Grade | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
|---|---|---|---|---|---|
| Inconel 625 Filler Wire | 8.4 g/cm3 | MPa – 517, Psi – 75,000 | MPa – 930, Psi – 1,35,000 | 2460°F (1350°C) | 42.5% |
| Physical Properties Of Alloy 625 Tig Filler Rod : |
| Density | 0.305 | lb/in.3 |
|---|---|---|
| 8.44 | g/cm3 | |
| Melting Range | 1290 – 1350 | °C |
| 2350 – 2460 | °F |
| Alloy 625 Filler Rod Temperature Range : |
| Grade | Temperature Range | |
|---|---|---|
| Inconel 625 Filler Wire | Celcius (°C) | Farienhite (°F) |
| 1093°C | 2000°F | |
| Diameter Tolerance for Chornin 625 Filler Metal : |
| Diameter | >0.80-1.20 | >0.03-0.10 | >0.40-0.80 | 0.03 | >0.10-0.40 | >1.20-2.00 |
|---|---|---|---|---|---|---|
| Tolerance | ±0.02 | ±0.005 | ±0.013 | ±0.0025 | ±0.006 | ±0.03 |
| Notch Tensile Properties Of En 2.4856 Tig Filler Wire : |
| Filler Wire | Average Ductility | Proof Stress (0.2%) (MPa) | Maximum Tensile Strength (MPa) | Young’s Modulus (GPa) | Notch Strength Ratio (NSR) |
|---|---|---|---|---|---|
| ERNiCrMo-3 | 30.4% | 365.1 | 720 | 235.5 | 1.11 |
| Typical Welding Parameters Of DIN 2.4856 Tig Welding Rods : |
| Diameter | Amps (V/OH) | Amps (flat) | Process | Volt | |
|---|---|---|---|---|---|
| Inch | (mm) | ||||
| 1/16″ | (1.6) | Spray Transfer 100% Argon | 200-250 | GMAW | 29-33 |
| .045″ | (1.2) | 180-220 | GMAW | 28-32 | |
| .035″ | (0.9) | 150-190 | GMAW | 26-29 | |
| 1/8″ | (3.2) | 100% Argon | 150-220 | GTAW | 15-20 |
| 3/32″ | (2.4) | 120-175 | GTAW | 15-20 | |
| 1/16″ | (1.6) | 90-130 | GTAW | 14-18 | |
| Why Choose Us : |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. e guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
| Packing : |

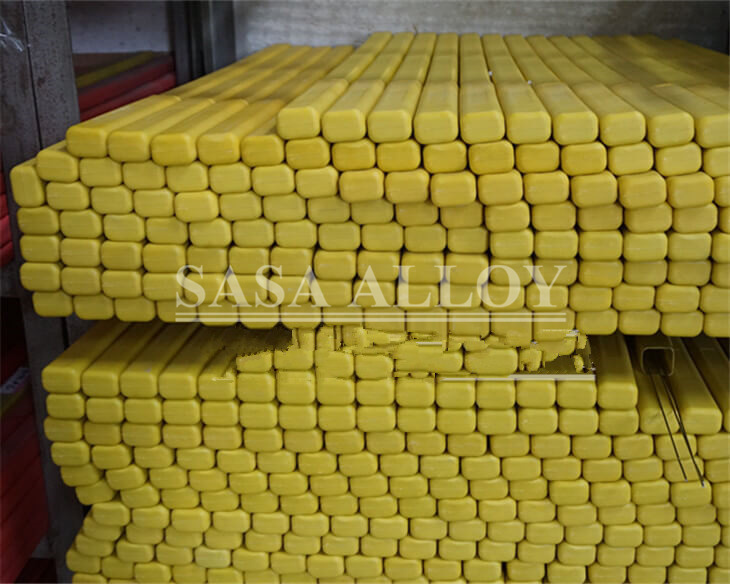

1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
