Incoloy 825 Wire
| Specifications of Incoloy 825 Wire: |
| Specifications | ASTM B446 |
|---|---|
| Dimensions | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Length | 100 mm TO 6000 mm, customizable |
| Diameter | 10 mm To 100 mm or as per client requirement |
| Density | 8.4g/cm3 |
|
580-750 |
|
as standard |
|
30 |
| Surface | Polished bright, Smooth |
| Technique | Cold Rolled, hot rolled |
| Condition | M, Y, 1/2Hard |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Alloy 825 Wire Equivalent Grades: |
| STANDARD | WERKSTOFF NR. | UNS | JIS |
| 825 | 2.4858 | N08825 | NCF 825 |
| CHEMICAL COMPOSITION OF UNS N08825 Wire: |
| Grade | Ni | Cr | Fe | Mo | Cu | Ti | Al | C | Mn | Si | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 825 | 38–46 | 19.5–23.5 | Bal. | 2.5–3.5 | 1.5–3.0 | 0.6–1.2 | ≤0.2 | ≤0.05 | ≤1.0 | ≤0.5 | ≤0.03 |
| 2.4858 Nickel Alloy Wire Mechanical Properties: |
| Property | Value |
|---|---|
| Tensile Strength | ≥ 585 MPa |
| Yield Strength | ≥ 220 MPa |
| Elongation | ≥ 30% |
| Density | 8.14 g/cm³ |
| Melting Range | 1370 – 1400°C |
| Applications of Alloy 825 Resistance Wire: |
-
1.Aerospace: Engine components, heat shields, high-temp springs
-
2.Marine: Anti-corrosion fasteners, cable braiding, seawater-resistant parts
-
3.Oil & Gas: Downhole springs, sealing wires, NACE-compliant uses
-
4.Nuclear & Power: Heat exchanger wire, reactor components
-
5.Chemical Processing: Wire mesh, reactor baskets, acid-resistant fittings
-
6.Welding (ERNiCrMo-3): TIG/MIG filler wire for Inconel & stainless steel
-
7.High-Temp Heating: Electric heating coils, support wires
| Why Choose Us |

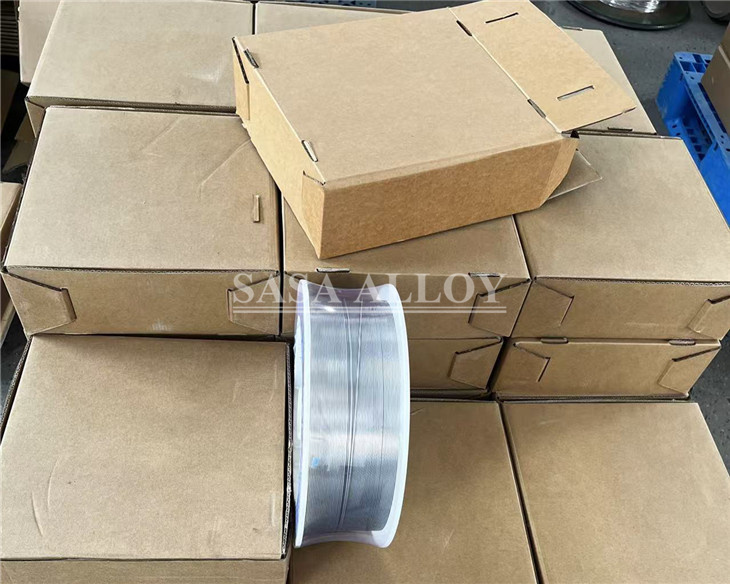

| Corrosion Resistant Nickel Wire Packing |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,

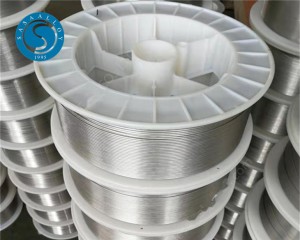

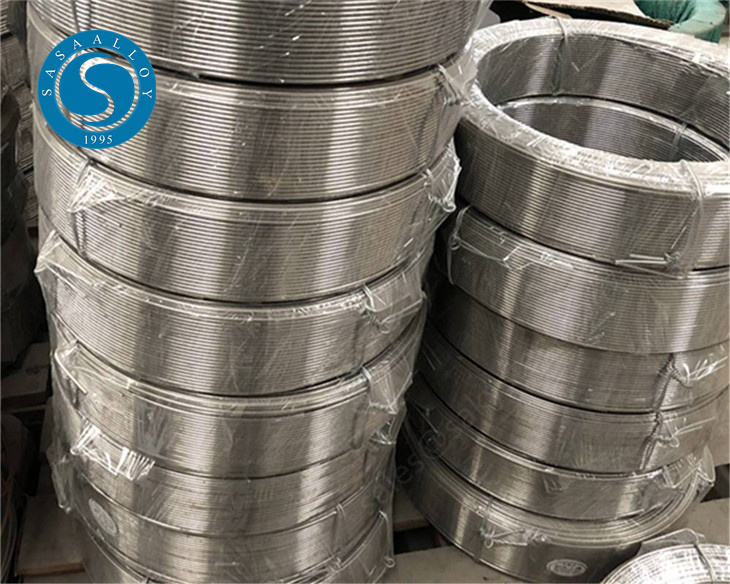

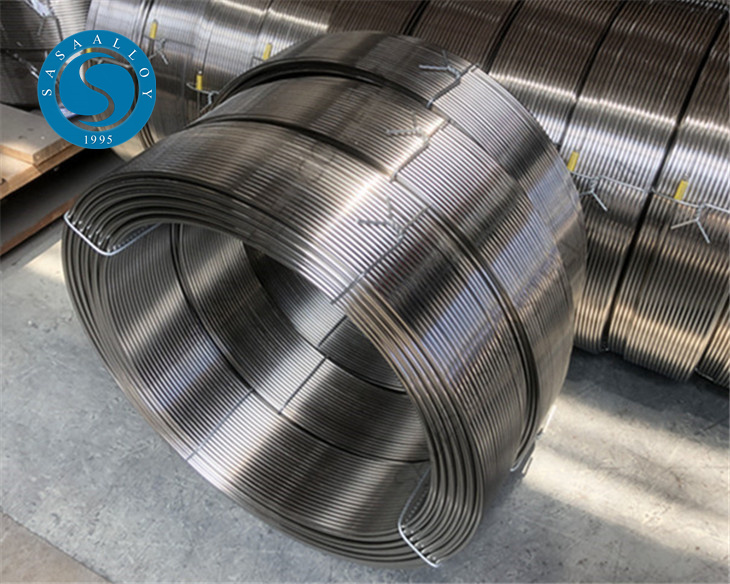

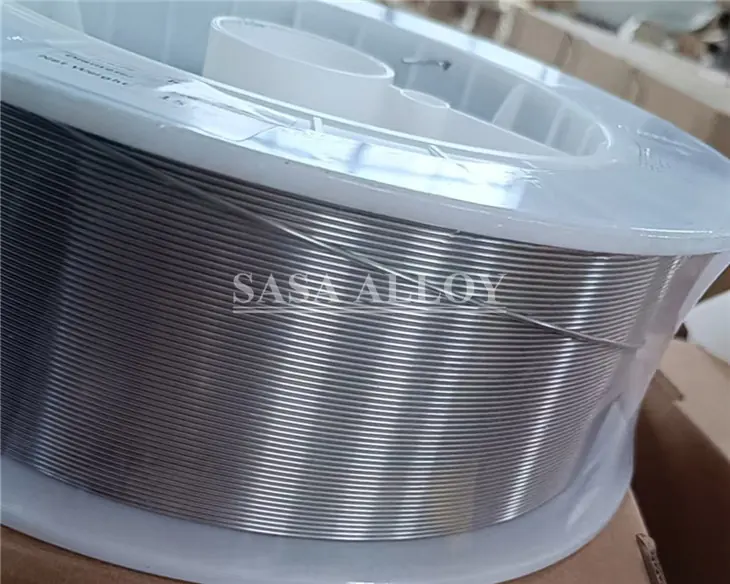

Incoloy 825 Wire Product Images
These product images show Incoloy 825 Wire form, surface condition and workmanship for visual verification before shipment.
